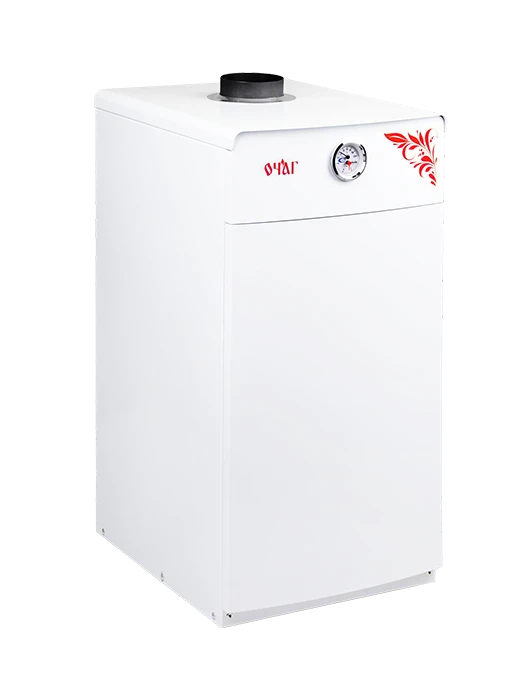

Combined gas apparatus AKGV-11,6C "Ochag".

Gas-Powered Cooking Appliances

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Combined gas apparatus AKGV-17,4E "Ochag" Combined gas apparatus AKGV-17,4C "Ochag".

Description

The combined gas apparatus AKGV-11,6C "Ochag" is manufactured in accordance with TU 4858-003-25331063-2014. The unit is designed for heat supply of residential buildings equipped with water heating system with working pressure of the heat carrier up to 0.3 MPa (3.0 kGs/cm) and temperature up to 95C with forced or gravity (natural) circulation of the heat carrier with automatic maintenance of the set temperature of the heat carrier, as well as for the preparation of hot water for domestic needs (DHW). Approximate heated area of 100 sq. m.; Power 11,6 kW; Efficiency not less than 92%; Control: mechanical; Burner and gas automatics (SABK-AT) of own production; Energy independent; Type of the main heat exchanger: Cylindrical shape, heat-tube with screw turbulators; Material of the main heat exchanger: steel, wall thickness of the heat exchanger 3 mm; Type of the secondary heat exchanger DHW: Copper, spiral-shaped; Chimney diameter: 100 mm.

Specifications

Power 11600 W

Type of apparatus, depending on the type of fuel used Gas

Type by method of hot water production Dual circuit

Availability of circulation pump no

Main heat exchanger material Steel

Material of DHW heat exchanger Copper

Weight 41 kg

Camera type Open

Type of fuel Natural gas according to GOST 5542

Assignment Heating and hot water supply

Type of installation Floor

Type of gas burner SABK (ServiceGas LLC)

Type of gas automatics SABK-AT (LLC "ServiceGas")

Length 450 mm

Width 350 mm

Height 760 mm

Mark HEART

Nominal heat output 11.6 kW

Nominal gas pressure 1.3

Maximum water temperature at the unit outlet 95 °C

Natural gas consumption 1.18

EFFICIENCY 92 %

Heated area 100

Chimney 100 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
