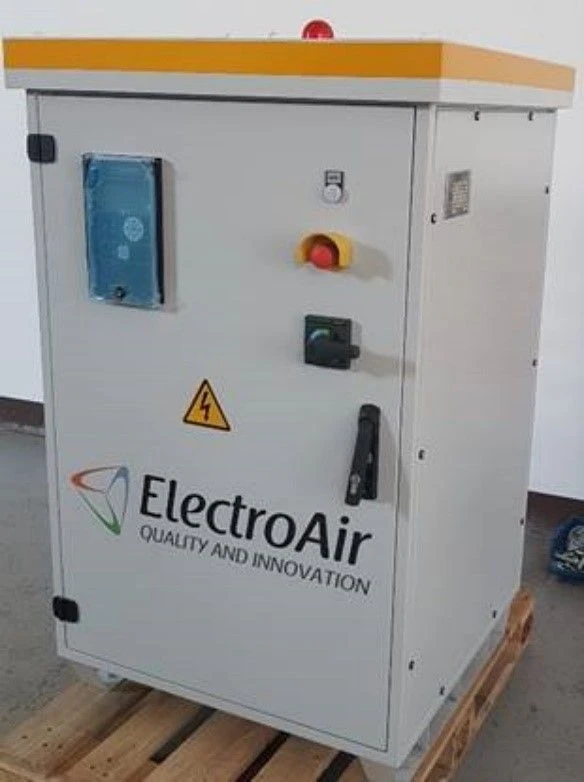

Combined Airport Power Supply EACR-90-600 for Aircraft and Helicopters

Static Power Converters

Manufacturer: ELECTROAIR LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Aerodrome combined power supplies of EASR series are designed for power supply of aircraft and helicopters in pre-flight mode, for centralised power supply of repair shops, complex simulators and test stations. The combined power supplies have two types of power outputs: DC, 28.5V and AC, 400Hz. Specifications: Input: - 380V, 50Hz; Output: <ul> <li>- 1 channel AC 115/200V 400Hz, 90 kVA;</li> <li>1 channel DC 28,5V 600A.</li> </ul>They are manufactured in the following versions: stationary, mobile on a trolley.

The aerodrome power supplies use a product control system developed on the basis of a modern domestic 32-bit microcontroller. The new control system makes it possible to exclude the possibility of external control and management of foreign technical means of reconnaissance.

Specifications

Efficiency in nominal mode, not less

97 %

Input voltage

380 V

Input frequency

50 ±5%

Inrush current

soft start

Overall dimensions (DxWxH)

850x870x1270 mm

Weight

56 kg

Degree of protection (IP)

Rated output voltage

28.5 V

Rated output power

Flat grinder, Specialised grinder

Rated output voltage

115/200 V

Load variation range

0-100 %

Sinusoidality distortion coefficient, not worse

3 %

Frequency of output voltage

400 ±0.001

Rated load power factor

>0.8 at 100% load

Output voltage amplitude modulation coefficient, not more than

1.5 %

Rated output current

600 A

Output voltage stabilization accuracy

±0.5 V

Output voltage ripple factor

?2 %

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
