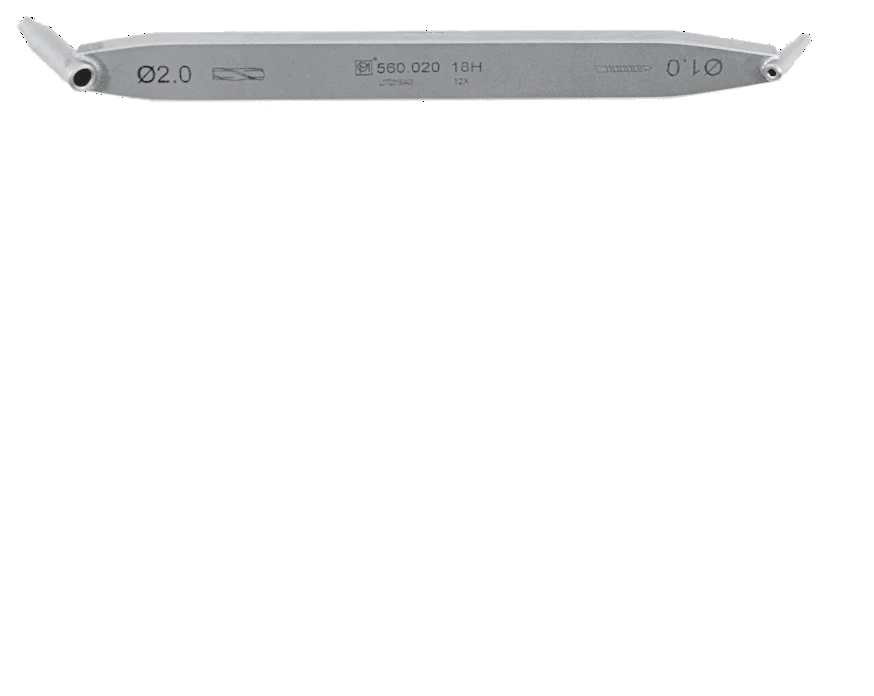

Combination guide 2,0/1,0 mm, article 560.020

Tool for the treatment of fractures. It is used for forming a hole for insertion of a cortical screw and a lockable self-tapping screw. It is made of corrosion resistant stainless steel. Total length -120 mm. Number of sleeves - 2 pcs with lengths of 13 and 21 mm. The size of the bushings corresponds to the size of the drill bit. The diameter of the drill bit is 1.0 and 2.0 mm. The angle of deviation of the bushings from the handle axis is 120. The serrations on the distal end ensure reliable placement on hard tissue surfaces (the product does not screw into bone). The proximal end has a handle for holding and manipulating the guide, or it can be held by another device (e.g. fixed in an orthopaedic holder). The diameter of the sleeve corresponds to the size of the drill bit. Marking of the drill diameter on the sleeve. Individual packaging. Reusable.
