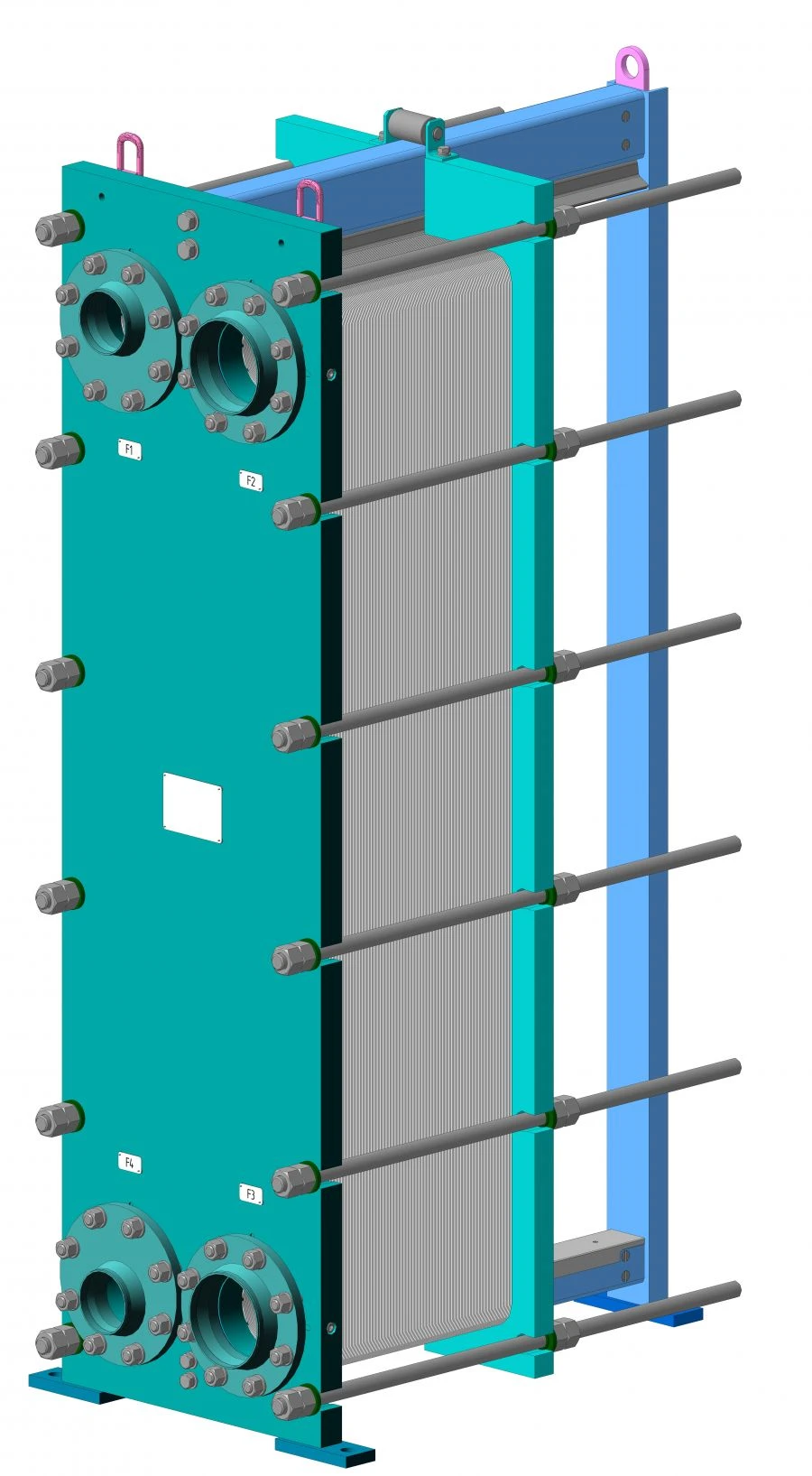

Collapsible plate heat exchangers type PHE

The heat exchangers are designed to work with working fluids with temperatures from minus 30 °C to plus 200 °C and pressure not higher than 2,5 MPa. Heat exchangers are earthquake-resistant products and are designed for use in areas with seismicity not more than 6 points. Climatic execution UHL and T, placement category of heat exchangers 1-4 GOST 15150. The design of collapsible heat exchangers should contain a package of corrugated plates (with a sealing gasket along the contour of each plate), placed between the main plate and the pressure plate. The design of heat exchangers should be collapsible, have a minimum number of places conducive to the deposition and accumulation of contaminants and corrosion products, and provide for the possibility of mechanical cleaning of all elements.
