Available for Import

Coiled tubing unit for underground and workover wells UKRS-20

Special Purpose Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

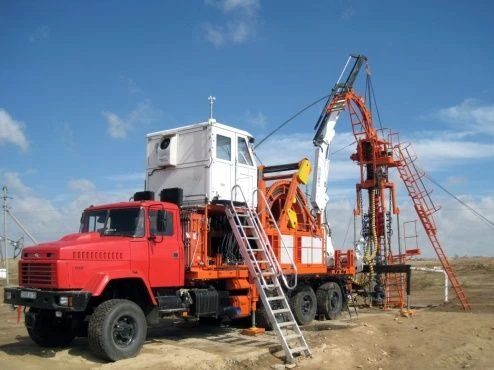

The coiled tubing rig for underground and workover wells "UKRS-20" is designed for downhole lifting operations at oil, gas and gas condensate wells during the following technological operations: -direct and reverse flushing of the production string and bottomhole; -elimination of various types of plugs and deposits inside the production string; - pumping of process fluids, -working with downhole and trapping tools, -drilling out cement plugs and other drilling operations, -flushing and thawing of small diameter pipelines of the internal infrastructure of oil and gas fields. Technical characteristics of "UKRS-20": -Chassis: KrAZ-7140 8x6 /MZKT-652712 8x8; -Depth of descent: 38.1 mm diameter DBT, 3 000 m; -Max. pulling force of MF: 20/24 t.s.; -Max. working pressure of the manifold: 35 MPa; -Loading torque of the equipment installer: 26 TM; -Equipment of wellhead: preventer / sealer: 35-70 MPa.

Technical Specifications

Service life, at least	10 a
Dimensions (DxWxH)	12000x2550x3950 mm
Weight	32000 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
