Available for Import

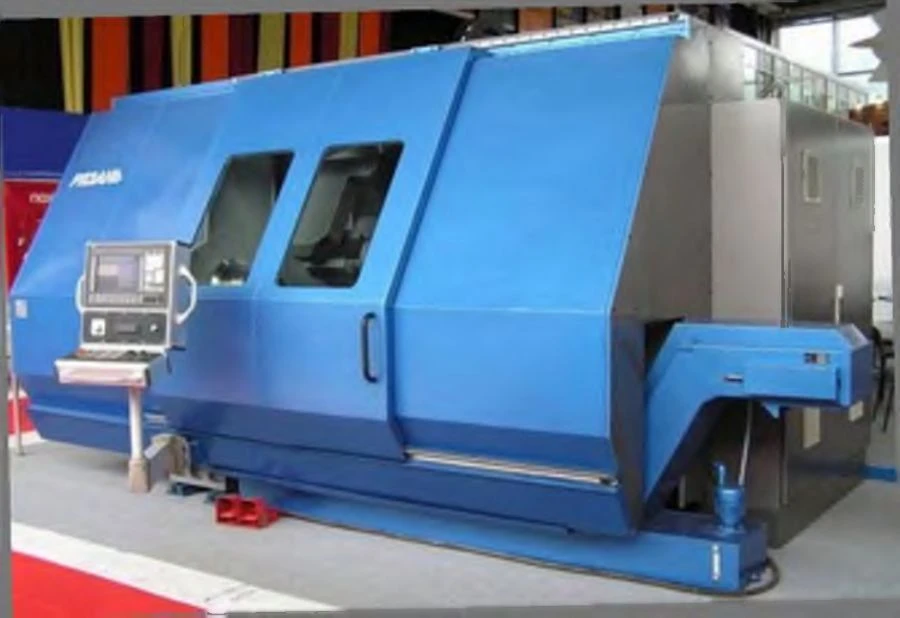

CNC Turning Center 1715Y-2D-1 for Precision Machining Applications
Manufacturer:
RSZ LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Description
The CNC lathe machining centre model 1715Y-2D-1 is designed for turning workpieces with straight, stepped and curved profiles in centres and chucks. The machine can be used for external and internal turning, milling, drilling, threading of parts made of bars up to 46 mm in diameter in automatic cycle and piece workpieces up to 210 mm in diameter in semi-automatic cycle. The machines have large ranges of feeds and spindle speeds, which fully ensure the selection of standard cutting modes for machining workpieces from various construction materials.
Specifications
Type of product according to PP RF 616
Turning machining centers (single and multi-spindle)
Length
3600 mm
Width
1800 mm
Height
1850 mm
Machine weight, not more
6000 kg
The largest diameter of the workpiece to be installed above the bed, not more than
300 mm
Distance between centers
1000 mm
Width (without remote control/ with remote control)
1800 mm
Width without remote control/ with remote control
1800 mm
Warranty period of operation
B1/B8 2100/900 MHz
Maximum length of the workpiece to be processed, max.
1000 mm
Largest diameter of the workpiece to be processed, max.
210 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
