Available for Import

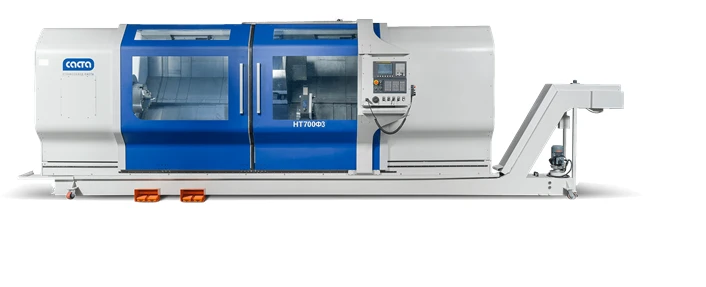

CNC LATHE NT700F4
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
-Machine version with counterspindle and Y-axis is possible.
-All these features expand the machine's technological capabilities, allowing for greater flexibility.
The rigid cast iron bed guarantees long-lasting stability of the geometric accuracy of the machine.
-The bed is tilted at 45° to ensure compact dimensions and facilitate chip evacuation.
-Wide prismatic slide rails and larger diameter ball screws with accuracy class C3 guarantee static and dynamic rigidity for a long service life.
Technical Specifications
| Type of product according to PP RF 616 | Lathes |
|---|---|
| Length | 5600 mm |
| Width | 2500 mm |
| Height | 2400 mm |
| Machine weight, not more | 12000 kg |
| Largest diameter of the workpiece to be mounted above the bed | 900 mm |
| Largest diameter of the workpiece to be machined above the slide | 700 (505* optional) mm |
| X-axis travel (transverse movement of the slide) | 385 mm |
| Z-axis travel (longitudinal movement of the slide) | 1500 mm |
| Tailstock movement | 1300 mm |
| Moving in the Y* axis | ±55 mm |
| Accelerated movement in the X axis (transverse movement of the slide) | 20 m/min |
| Accelerated movement in Z axis (longitudinal movement of the slide)m/min20 | 20 m/min |
| Type of encoders on linear axes X, Z | Motor encoder |
| Positioning accuracy | 0.005 mm |
| Repeatability | ±0.005 mm |
| Z-axis screw diameter | SBVVBG mm |
| Z-axis screw pitch | B1/B8 2100/900 MHz mm |
| Ball screw class, Z axis | ?3 |
| Connection type with servomotor | Straight (coupling) |
| Z-axis drive power | 6 kW |
| Z-axis drive torque | 38 Nm |
| X-axis screw diameter | 40 mm |
| X-axis screw pitch | 10 mm |
| Ball screw class, X axis | ?3 |
| Connection type with servomotor | Straight (coupling) |
| X-axis drive power | 6 kW |
| X-axis drive torque | 38 Nm |
| Maximum spindle speed | 1500 |
| Maximum torque | 1747/2160 Nm |
| Speed control | Stepless, in 2 ranges |
| Main engine power | Fanuc: 30/37 kW |
| Chuck diameter | 450 (500*optz) mm |
| Chuck type | Hydraulic |
| Diameter of the hole in the spindle for the bar | 117 mm |
| Attachment of the turret tool | VDI60 (BMT75/VMT85*) |
| Turret tool change time | 0.53 |
| Number of turret tool slots | 12 (8* optional) pcs. |
| Turret positioning accuracy | ±4 arc sec. |
| Maximum rotational speed of the turret drive tool | 4000 |
| Moving the tailstock quill | 150 mm |
| Diameter of tailstock quill | 150 mm |
| Tailstock quill taper | Morse 5 |
| Maximum pump pressure of the coolant system | 4 (20* optional) bar |
| Coolant tank capacity | 500 l |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
