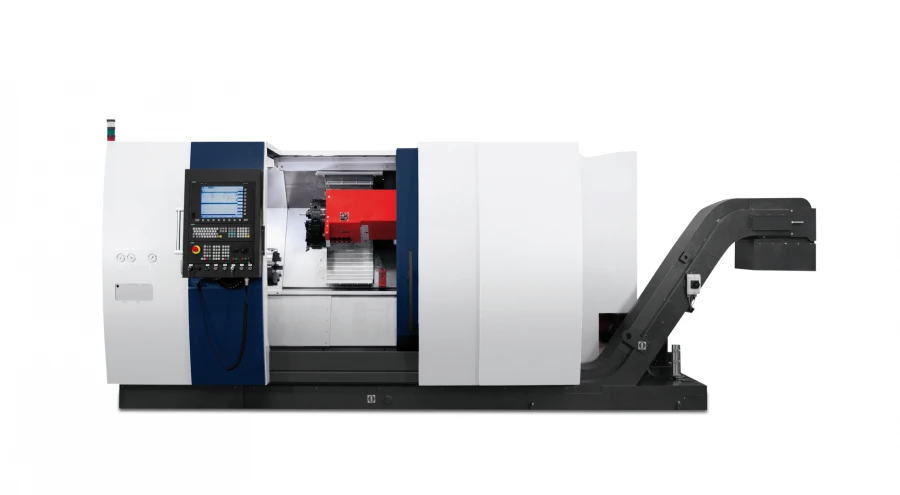

CNC Lathe Machine "MT-95" for Precision Engineering Applications

CNC lathe "MT-95" of the trade mark "Unimatic" with CNC system of IntNC PRO type (Ivanovo, Russia) (hereinafter - "machine"), is designed for complex machining of rotational parts of shaft, flange type, by means of various types of turning and milling operations, including machining of bar blanks with diameter from 6 mm to 95 mm. Maximum chuck size -400mm; maximum rotation speed - 3500 rpm; main spindle power - 28kW; drive tool power - 8kW; Y-axis - +60/- 80mm. Movement in the X-axis, mm - 318; Movement in the Y-axis, mm - 140; Movement in the Z-axis, mm - 1360; Spindle torque Nm - 800; Type of tool holder - One turret.

Maximum diameter of the processed part, mm - 700. Counterspindle - Available/possible. Rolling guides.

CNC lunette. The bed is inclined.
