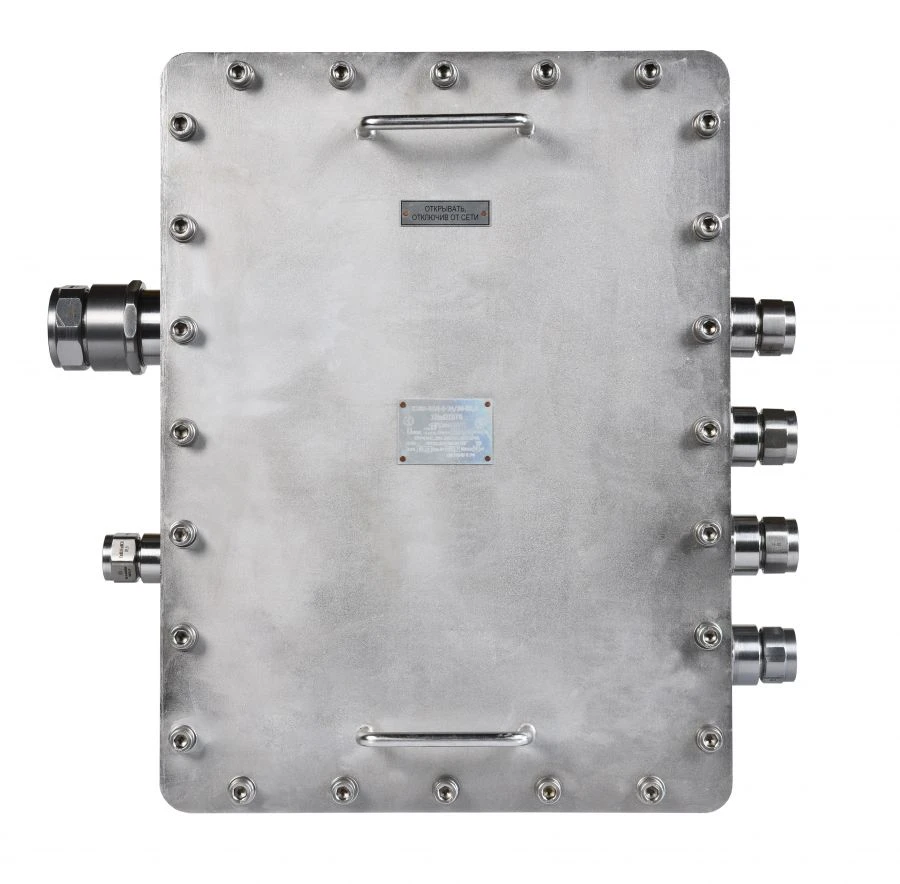

Clamping box type KZVN-VEL7-IIB
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Available Models
Description
Clamp boxes are designed for connection and branching of armoured and unarmoured cables with a sheath of round cross-section with copper or aluminium conductors in AC and DC circuits in mines and mines, hazardous by explosive gas and dust.
Specifications
Climatic version
OM1;B1.5
Nominal voltage
60 V
Rated current
10 A
Sheath material
stainless steel
Overall dimensions of the shell (HxWxH)
600?590?334.5mm
Shell weight
58 kg
Explosion protection marking
Ex tb IIIC T200°C Db;Ex tb IIIC T135°C Db;Ex tb IIIC T100°C Db;Ex tb IIIC T85°C Db;RV Ex d I Mb;RV Ex d ia I Mb/1Ex d ia IIB T6... T3 Gb X;1Ex d IIB T6... T3 Gb
Degree of protection against external influences
IP66
