Clamp for long products ZSPo-1,0-55-200

Material Handling Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Clamp for long products ZSPo-3,2-55-450 Clamp for long products ZSPo-2,0-200-450 Gripper for long products ZSPo-3,2-450-650 Clamp for long products ZSPo-3,0-55-300

Description

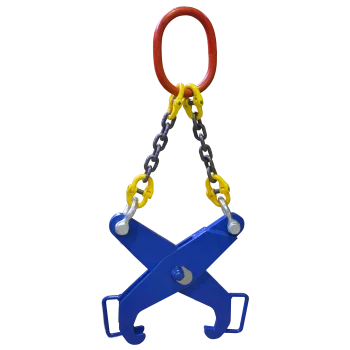

Gripper ZSPo is designed for lifting and moving long products - T-beams, I-beams, rails and similar loads.

The clamp is a pincer-type construction, the load is secured by clamping the free ends of the levers around the protruding elements of the load, e.g. rail head, beam flange. Metal rods are replaced by chain rods, which reduces the metal consumption of the construction. This version of the gripper is more compact for storage and transport.

It is recommended to lift and move the load with at least two grippers suspended on the linear crossbeam. When using grippers on the sling of 2SK and 4SK types, their displacement and overturning of the load is possible.

Specifications

Payload

1 t

Designation

????-1,0-55-200

Suspension link size

90x150 mm

Operating range

55-200 mm

Product weight

7.8 kg

Manufacturer's item

20400040245
