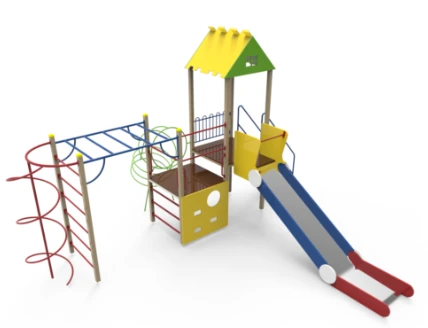

Children's playground-006 (DG-006)

Children's playground is designed for children from 6 years old. Bearing poles of the complex should be made of a pro-profile pipe with a cross-section of 60x60 mm. The top of the post should end with a plastic plug, the bottom of the post should be toned into the ground. To increase the rigidity of the structures, frames should be made to the supporting poles, into which the floor is fixed. The floors of the towers are made of 24 mm thick moisture-resistant laminated non-slip plywood. The side screen in the form of a fence is made of 20 mm metal crossbars. The roof slopes are made of 15 mm thick moisture-resistant painted plywood. The frame of the slide shall be made of 40x25 mm profile pipe. The slope of the slide shall be made of a single sheet of stainless steel 2 mm thick. The sides of the slide shall be made of moisture-resistant plywood not less than 21 mm thick and 110 mm high.
