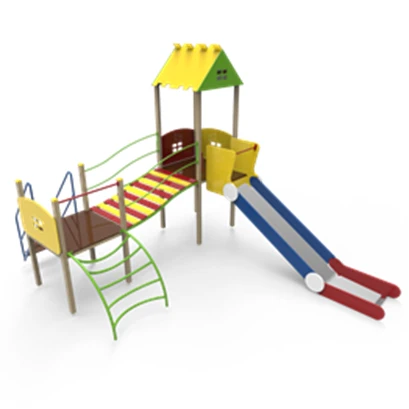

Children's playground-003 (DG-003)

Children's play complex is designed for children from 5 years old. Bearing poles of the complex should be made of pro-profile pipe section 60x60 mm. The top of the post should end with a plastic plug, the bottom of the post is concreted into the ground. Roof slopes are made of 15 mm thick moisture-resistant painted plywood. Floors of towers and passages are made of moisture-resistant laminated non-slip plywood not less than 21 mm thick. The side screens of the towers are made of moisture-resistant painted plywood not less than 21 mm thick, the handrails of the passage are made of metal crossbars of 33 mm pipe section, 700 mm high. The slope of the slide is made of a single sheet of stainless steel 1.5 mm thick and recessed into the groove of the plywood board. The presence of 110 mm high sides of the slide is obligatory in order to avoid traumatisation of children. The slide must have a starting platform with a crossbar section of 33 mm, forcing the child to sit down, acceleration lanes and braking areas.
