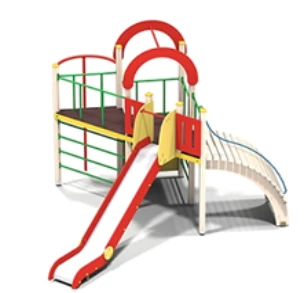

Children's play complex-22 (DIK-22)

Children's playground complex must consist of a tower of tri-angular shape.To the tower, with a platform height of at least 1500 mm, must be attached: plywood drum ladder with a rung and a rope, vertical pole without a spiral and fastening in the form of an arc, fencing in the form of rungs, plywood fencing, vertical stairs, 2 decorative arches, slide, climbing wall with holes for hands and feet, handrails.Bearing poles of the complex should be made of glued wooden bar with a cross-section of at least 100x100 mm and have a rounded profile with a groove in the middle or of metal profiled pipe with a cross-section of at least 60x60x3 mm. The top of the post should end with a plastic plug, the bottom of the post should end with a galvanised metal support with a diameter of at least 42 mm or a continuation of a profiled pipe 60x60x3 mm, which is concreted into the ground.The floor of the tower should be made of moisture-resistant laminated non-slip plywood with a thickness of at least 21 mm.
