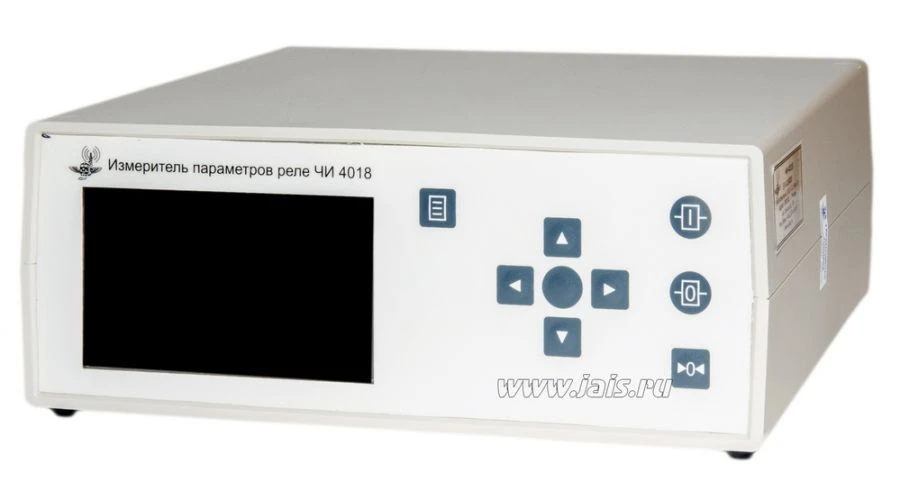

ChI4018 relay timing meter

Digital Electrical Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Designed for measuring time parameters of relays when relay windings are powered from an external voltage source of DC up to 10 A at voltage up to 240 V; AC up to 6 A with frequency of 50 Hz at voltage up to 380 V, as well as when the device is not connected to the external power supply of relay windings.
It is used to measure time parameters of various switching products (buttons, toggle switches, switches).

Specifications

Circuit resistance of the open circuit of the internal key, not less than On direct current, MOhm: 1;on alternating current (f=50 Hz), kOhm: 100

Resistance of closed internal key circuit Not more than 0.3 ohm

Уровень ограничения всплесков напряжения на ключе цепи реле 600 V

Maximum relay winding supply voltage 380 V

Power consumption no more than 10 W

Mains frequency 50 ±1%

Supply mains voltage 220+10% - 15% V

Limits of permissible basic error of measurement of relay operation delay time expressed in per cent shall be equal to ?=±[0,005+0,004*(X?/?-1)]

Time display limits 99999.9 with 0.1 discretisation

The device allows to perform - multiple automatic and manual measurement of the above mentioned parameters with calculation of the average value of the measured values with the possibility of selecting the number of cycles of automatic measurement up to 99; - measurement of relative t

The device allows to determine in one measurement cycle one or a group of the following parameters - time of relay operation with closing or opening contacts, at that for each contact there is a choice of measurement variant;- to the first contact operation;- to the full operation of the contact taking into account its debouncing;- time of relay release

Time of establishment of the operating mode of the device, not less than 10

Overall dimensions, not more 246x198x96 mm

Insulation resistance of power supply circuits and relay and contact circuits in relation to the device ground terminal under no 20

Electrical insulation under normal conditions withstands 1 min of action Test voltage of 1,5 kV sinusoidal form with frequency (50±1) Hz between the inputs of the power supply circuit and the protective earth clamp connected together and between the contacts of the relay contact and power supply circuits connected together and

Weight, not more 1.5 kg

Operation at ambient temperatures -10...50 °C

Operation at upper relative humidity at 30° C and lower temperatures Flat grinder, Specialised grinder %

Maximum current through relay circuit (using internal key) 10 A

Maximum current through relay circuit (using external key) 10 A

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
