Chamber electric vacuum resistance furnace PSVG

Electric Resistance Furnaces

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Vacuum chamber resistance furnace PSVG is designed for carrying out thermovacuum technological processes of products at a maximum temperature of 1150 ºC.
Field of application: production of products of electronic industry, instrumentation, mechanical engineering, scientific research.

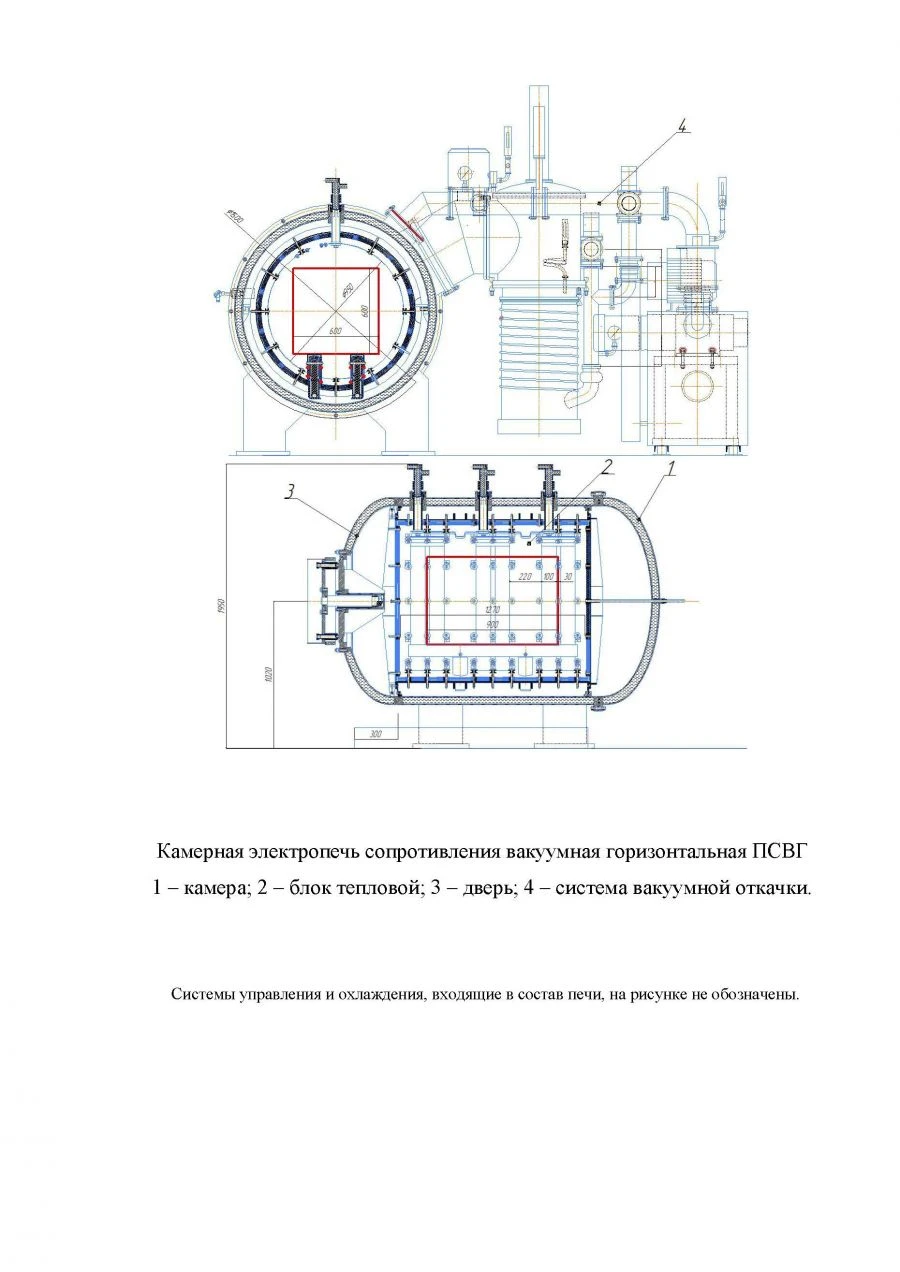

The furnace is a cylindrical water-cooled housing of horizontal arrangement with a door, inside of which the heater and the technological table are located.

Technical Specifications

Type of product according to PP RF 616	Electric resistance furnaces
Mark	PSVG
Model	PSVG
Power	83 kW
Power of heating element, not less/not more	66/70 kW
Installed power, no less/no more	82,5/85 kW
Rated current frequency:	SBVVBG
Rated supply voltage	380 V
Vacuuming time, not more	60
Weight of the cage, not less:	200 kg
Number of independent heating zones, no less than	1
Accuracy of temperature maintenance in steady-state mode, not more:	±5 °C
Uniformity of temperature maintenance in the working space in steady-state mode in the temperature range from 600 to 1150 °C, n	±10 °C
Medium in the working space: - during heating and isothermal holding ; - during cooling	Vacuum
Weight (excluding chiller weight), not less/not more	4850/5000 mm
External overall dimensions, max.	width - 4050, length - 2735, height - 3250 mm
Overall dimensions of the working space, not less:	width - 400; length - 600; height - 400. mm
Maximum residual pressure at maximum temperature after pre-degassing of the heating module, not exceeding	1,3310-3(110-5)
Maximum temperature, not less than	1150 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
