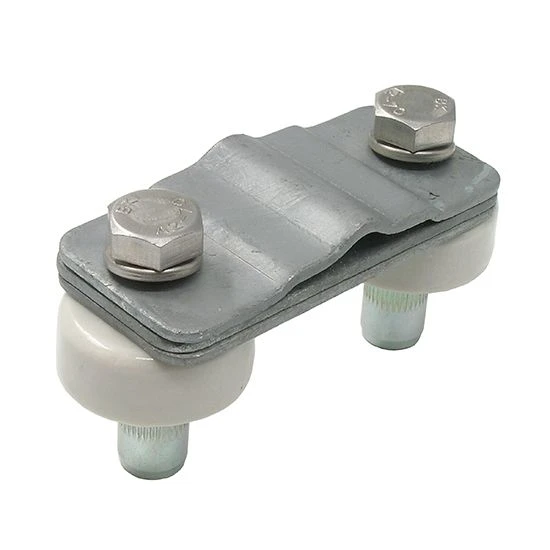

Ceramic Insulator Conductor Holder DOC-30.2GTS-ZR8 for Grounding Applications

The conductor holder on ceramic supports DOK-30.2GTs-ZR8 is used as a part of earthing, lightning protection and potential equalisation systems for fastening (parallel connection) of round and flat earthing conductors to horizontal and vertical surfaces of buildings and constructions made of sandwich panels. Fastening - on 2 threaded rivets. Ready-made solution for fastening of earthing strip (tyre).

Made of steel with hot zinc coating according to GOST 9.307-89, fasteners made of stainless steel. Completeness of the product (supplied assembled): plate 70x30x2 mm (drawing AELI.341499.108-03.1) - 2 pcs., plate "Strip/Circle" 70x30x2 mm (drawing AELI.341499.108-02.1) - 1 pc., ceramic support 30 mm - 2 pcs. standard stainless steel fasteners: bolt M8x35 - 2 pcs, spring washer 8 - 2 pcs., threaded rivet - 2 pcs.

(standard fasteners made of hot-dip galvanised steel can be installed at the Customer's request).
