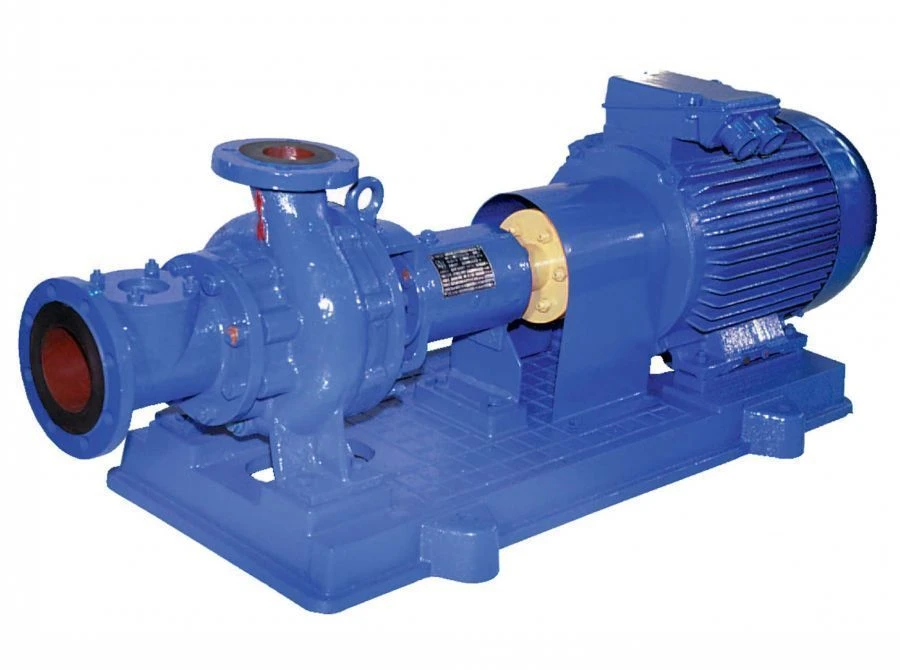

Centrifugal Electric Pump Unit Type "SM" for Efficient Fluid Transfer

Electric pump units of "SM" type - centrifugal, horizontal consist of a pump and a motor mounted on a common base plate (frame). They are designed for pumping domestic and industrial contaminated liquids with hydrogen pH from 6 to 8.5, density up to 1100 kg/m3, containing various non-abrasive suspended solids, including wood-fibre semi-finished products, concentration up to 2 % by weight, abrasive suspended solids not more than 1 % by volume, size up to 5 mm, microhardness not more than 9000 MPa. The maximum gas content in the pumped liquid is 5 %. Advantages of use: the design provides disassembly and assembly of the pump at the place of operation without dismantling the pressure and suction pipework.
