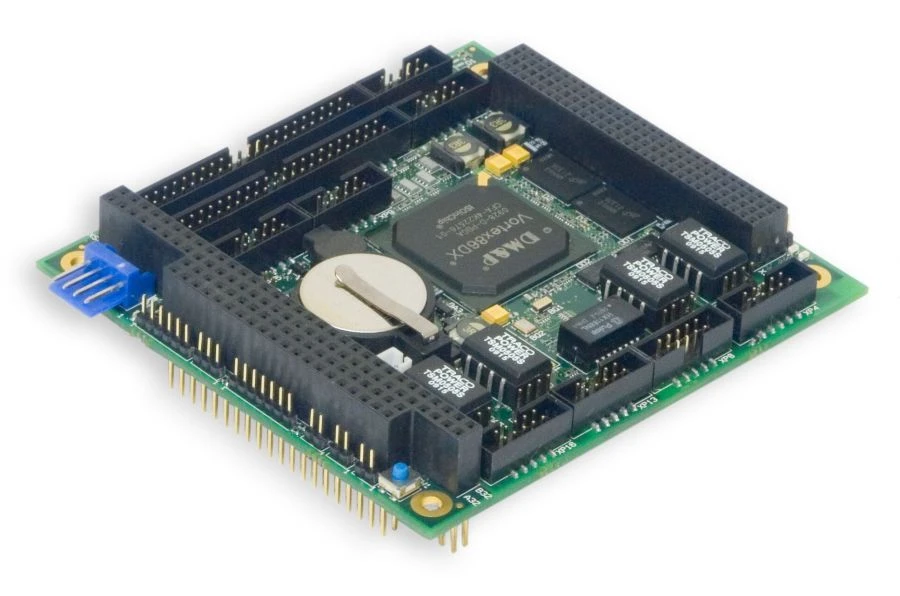

Central processing unit module CPC307-02 (IMES.467444.038-01)
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
The module is based on the "System on Crystal" (SOC) Vortex86DX with an integrated 32-bit x86 processor operating at a clock frequency of 600 MHz. The module is designed in PC/104-plus format and is intended for embedded applications requiring CAN interfaces, high-speed RS-422/485 and RS-232 ports, low power consumption in the operating temperature range from minus 40 to plus 85 ?. Expansion of the module functionality is possible by connecting additional modules - PC/104 and PC/104-plus expansion boards depending on the module version.
Technical Specifications
| Operating temperature | From minus 40 C to plus 85 C |
|---|---|
| Weight | 0.135 kg |
| RAM | DDR2 SDRAM 256 Mbytes |
| FLASH BIOS | For versions up to 4.x: 512 Kbytes parallel Flash (ISA); 256 Kbytes (backup, SPI Flash); system modifiable. For versions 4.x: 56 Kbytes (SPI Flash) without BIOS backup; Hardware BIOS reset capability |
| FLASH disk | 1 GB NAND Flash for versions up to 4.x; 2 GB NAND Flash for versions 4.x; Connected to IDE interface |
| HDD connection port | Connect up to two devices; Supports UDMA2 |
| Connectors for connecting two memory cards | Supports microSD, microSDHC memory cards |
| PS/2 keyboard and mouse port | Armoured glass |
| One Ethernet link | 10/100 Mbps |
| USB port | Supports up to 4 USB 1.1, USB 2.0 devices; Supports booting from USB devices |
| Two isolated CAN 2.0b channels | Transmission speed up to 1 Mbit/s; channel isolation at least 500 V |
| Universal parallel port | Supports SPP, EPP, ECP modes |
| PC/104 (ISA) | 16-bit ISA bus, bus frequency 8 MHz |
| PCI/104 (PCI) | 32-bit PCI bus, bus frequency 33 MHz |
| CMOS RAM | 256 bytes |
| Non-volatile FRAM memory (SPI) 256 kbit | Automatic saving and restoring of CMOS memory settings when the module is operated without a removable DC battery installed; Write/read user data via BIOS functions |
| Real Time Clock | The clock operation, when the module power supply is disconnected, is provided by a replaceable DC battery |
| Opto-isolated reset/interruption | Armoured glass |
| LED indication | Two program-controlled LEDs; Possibility to connect external LED indication |
| Two I2C ports | Armoured glass |
| Three watchdog timers (WDT) | Two internal, 30.5 µs interval 512 s; External, fixed interval 1.6 s |
| Console I/O via serial port | Armoured glass |
| Software compatibility with OS | FREEDOS; MS DOS 6.22; Linux 2.6, QNX 6.4, WinCE 5.0 |
| Nutrition | On PC/104 and PC/104-plus connectors; On auxiliary power connector; Current consumption up to 1 A |
| Processor | DM&P Vortex86DX |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
