Description
The cell of the equipment remote power supply allocator (VDPO-2) is a part of the complexes of communication equipment IKM-7TM and ASTM.
VDPO-2 8g2.087.005 cell is designed to convert remote power supply current from 142 to 158 mA to DC voltage ±5 V for power supply of line and terminal equipment installed in the frame ORP, ORP-M, ORP-C, ORP-S, ORP-SM (from the composition of the equipment ASTM, IKM-7TM) and for the formation of inductor call from DC voltage ± (65 ± 7) V.

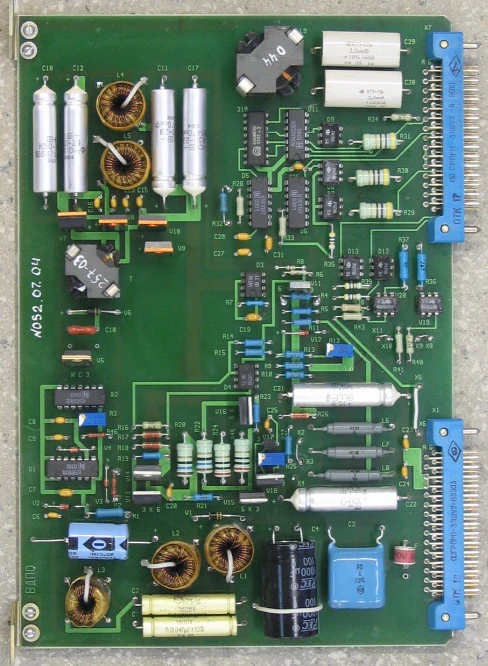

The cell is a printed circuit board, connected to the ORP type frame through a socket connection.
VDPO-2 8g2.087.005 cell is designed to convert remote power supply current from 142 to 158 mA to DC voltage ±5 V for power supply of line and terminal equipment installed in the frame ORP, ORP-M, ORP-C, ORP-S, ORP-SM (from the composition of the equipment ASTM, IKM-7TM) and for the formation of inductor call from DC voltage ± (65 ± 7) V.
The cell is a printed circuit board, connected to the ORP type frame through a socket connection.
Specifications
Input voltage at 150 mA DP current
not more than 68 V
Output voltage in circuits "+5V"; "-5V"
5,05 ± 0,15 V
Load current in "+5V" circuit
0-1,2 A
Load current in the circuit "-5V"
0-0,08 A
Asymmetry of output voltages in "+5V"; "-5V" circuits
Not more than 1.0 %
Effective value of ripple voltage
Not more than 0.015 V
Effective value of the inductor call generator call signal
Not less than 35 V
Frequency of inductor call generator call signal
25 ± 5
Operating temperature range
-40 to +40 °C
Service life of the equipment
at least 10 a
