Available for Import

CDT type shut-off valves

Shut-Off Valves

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

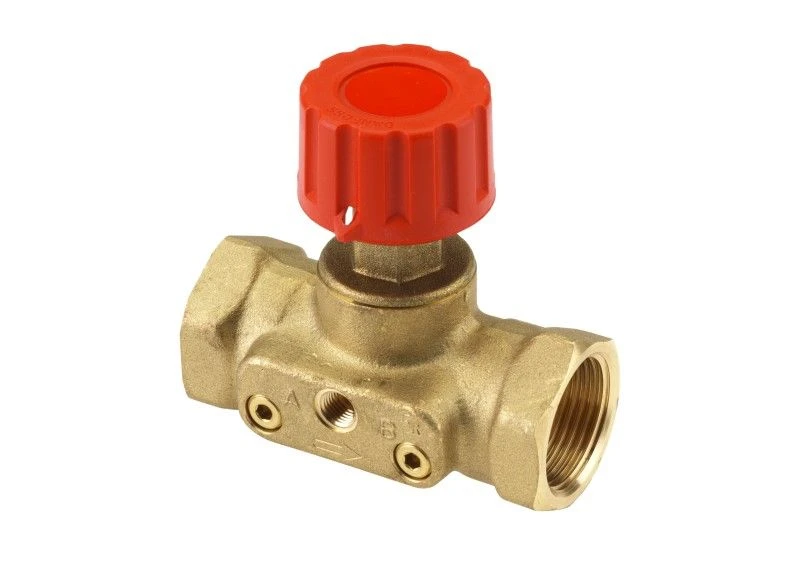

The CDT shut-off valve is designed for installation on the supply pipeline. It can be used only as a shut-off valve and for connection of impulse tube from balancing valves APT or ASV-P. The valve is supplied with plugs for measuring nipples. If the nipples are installed, it is possible to measure the flow rate of the heating medium flowing through this section of the system.
Not intended for contact with potable water in drinking water supply systems.
CDT shut-off valves have a declaration of conformity to the requirements of the Technical Regulations of the Customs Union TR TS 010/2011.

Technical Specifications

Equipment	valve; insulating shell; instructions; passport (on request in electronic form); operating manual (on request in electronic form).
Steel grade	Brass (for body, cone, seat, spindle)
Material	Brass (for body, cone, seat, spindle)
Climatic version	Category 3 according to GOST 15150-69
Type	Brass, coupling
Designation	CDT shut-off valves
Operating conditions	UHL4 according to GOST 15150
Gate tightness (leakage volume / tightness class)	Leakage class D according to ISO 5208
Joining	female thread (DN 15-40) / male thread (DN 50)
Medium temperature	-20 to +120 °C
Transported medium	Water and aqueous glycol solutions for systems
Flow capacity, Kvs	1.6 to 16
Nominal diameter	15 to 50 mm
Weight	0.31 to 2 kg
Pressure rating	1.6 MPa

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
