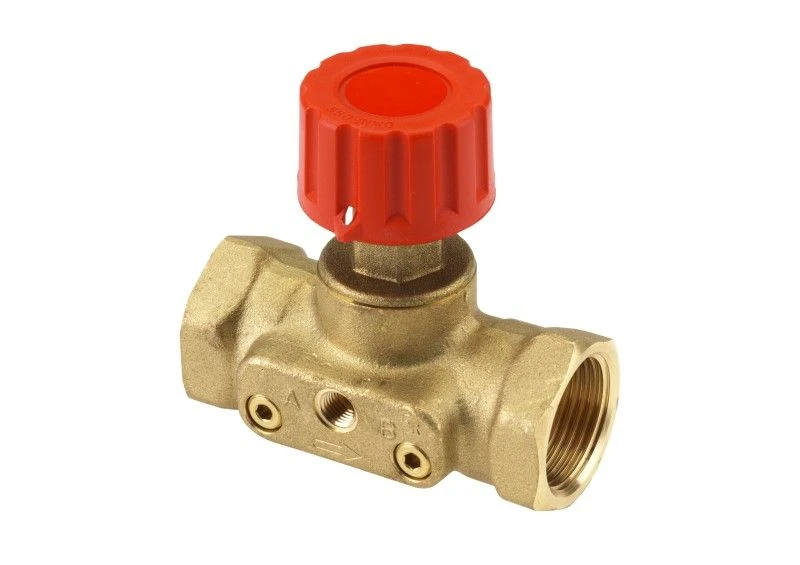

CDT Type Shut-off Valve for Piping System

Available for Import

CDT Type Shut-off Valve for Reliable Control in Piping Systems

Shut-Off Valves

Manufacturer: RIDAN LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The CDT shut-off valve is designed for installation on the supply pipeline. It can be used only as a shut-off valve and for connection of impulse tube from balancing valves APT or ASV-P. The valve is supplied with plugs for measuring nipples. If the nipples are installed, it is possible to measure the flow rate of the heating medium flowing through this section of the system. Not intended for contact with potable water in drinking water supply systems. CDT shut-off valves have a declaration of conformity to the requirements of the Technical Regulations of the Customs Union TR TS 010/2011.

Specifications

Equipment

valve; insulating shell; instructions; passport (on request in electronic form); operating manual (on request in electronic form).

Steel grade

Brass (for body, cone, seat, spindle)

Material

Brass (for body, cone, seat, spindle)

Climatic version

Category 3 according to GOST 15150-69

Type

Brass, coupling

Designation

CDT shut-off valves

Operating conditions

UHL4 according to GOST 15150

Gate tightness (leakage volume / tightness class)

Leakage class D according to ISO 5208

Joining

female thread (DN 15-40) / male thread (DN 50)

Medium temperature

-20 to +120 °C

Transported medium

Water and aqueous glycol solutions for systems

Flow capacity, Kvs

1.6 to 16

Nominal diameter

15 to 50 mm

Weight

0.31 to 2 kg

Pressure rating

1.6 MPa

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
