Cassette rack for sheet metal - STEK

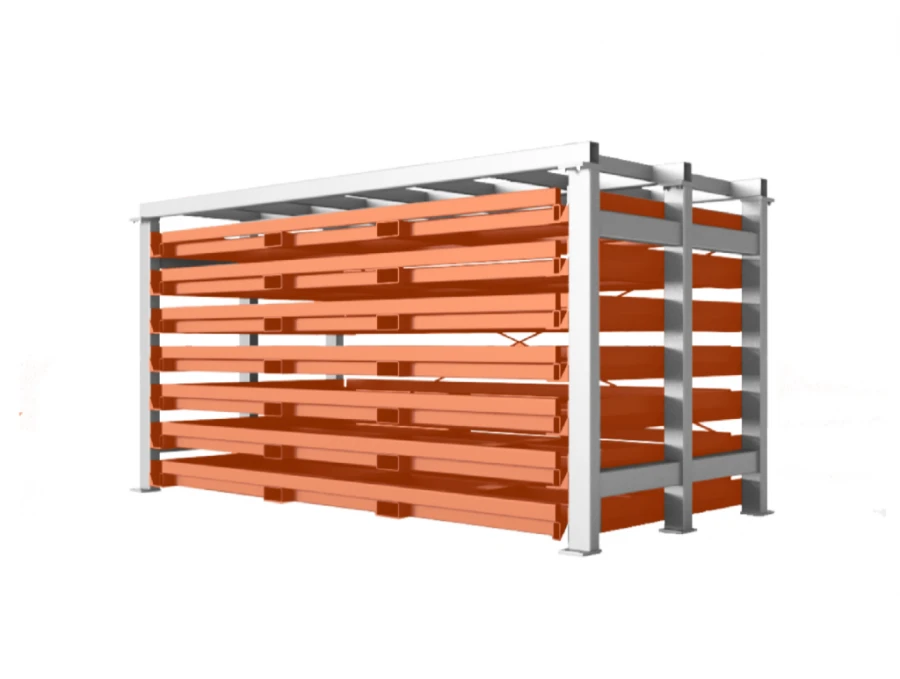

The Stack racking module consists of two walls with rails and a set of cassettes, which are installed in the racking by a forklift and can be used for in-process load handling.

The cassette can be loaded with either a standard forklift or a four forklift (for wide spans).

The shelving unit allows for compact storage of a wide range of goods. The cassettes are suitable for storing sheet material or, in the solid bottom version, any other oversized load.

For loading sheet metal we recommend the use of a decoiler, which allows you to safely load a bundle of metal into the cassette.

Technical specifications
Storage - sheet metal, moulds
Loading method - forklift
Shelves - non-retractable
Load capacity, kg - 3000, 5000
Shelf height (mm) - up to 6000
Number of cassettes - up to 30
Sheet length (mm) - from 2000 to 6000
Sheet width (mm) - from 1000 to 2000
