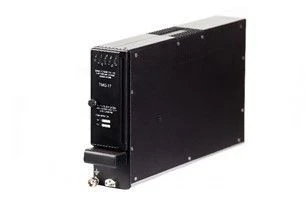

Cartographic Information Formation Unit TMG-17 for Efficient Aircrew Navigation

Aircraft Spare Parts

Manufacturer: RPKB OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The TMG-17 cartographic information formation unit is designed to store and form cartographic images and display information of interest to the aircraft crew. This solution is a new approach in providing crews with information and is an alternative to EFB (Electronics Flight Bag) systems. TMG-17 does not have its own display, but can be connected to virtually any multifunctional display via digital or analogue interfaces. This approach allows for optimal utilisation of the equipment already installed on board, as it does not require the installation of an additional display.

Specifications

Failure rates

Average operating time to failure in flight: not less than 10,000 hrs, average operating time to failure and damage: not less than 5000 hrs

Weight

3,00 ±0,15kg

Dimensions

61×196×350,5 mm

Operating temperature range

-40 °C to +65 °C, no forced cooling required

WSF categories according to KT-160D

KT/160D WVF. [V4/A4]HVAV[SGR/ (BA)(B1A)]XXXDFSAAAZZ[RR]M[XXXXX]XXX

Power consumption

No more than 30 W

Information exchange channels

ARINC 429: 10 inputs / 2 outputs, ARINC 646: 2 channels RC: 24 inputs / 2 outputs, RS 422: 2 channels RS 232/RS 422: 2 channels, Video PAL: 2 outputs, Video VGA: 2 outputs, IDE: 2 channels

Electricity supply

18.0 to 31.5

Compact Flash container

Not less than 1 GB

Ready time (in NKU)

No more than 10 s
