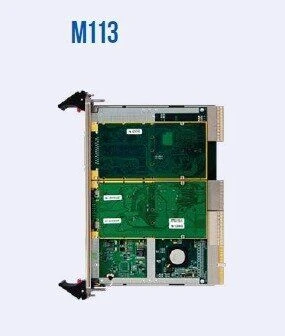

Carrier Module PMC M113 for Connecting Two PMC Modules to CPCI Bus

Module carrier M113 and its versions (hereinafter - the module) is designed to connect two PMC modules to the CPCI bus with the output of I/O signals on the front panel of the interfaces or through the back side to the CPCI interface connectors. The module has the size of a standard 6U Euro board and can be installed in a PICMG 2.0 version 3.0 CompactPCI bus crate. The module also meets the Conduction Cooled PMC standard, VITA 20-199x/D1.6.

The module provides: <ul> <li>- PCI bus capture for each PMC slot;</li> <li>32/64 bit data handling at 33 MHz with up to 512 MB/s performance. The module is designed for operation as part of on-board equipment of automatic and automated control systems operating in difficult operating conditions.</li> </ul>The enterprise-manufacturer guarantees conformity of the product quality to the requirements of technical specifications under observance by the customer of conditions and rules of storage, transportation, installation and operation established by technical specifications.....
