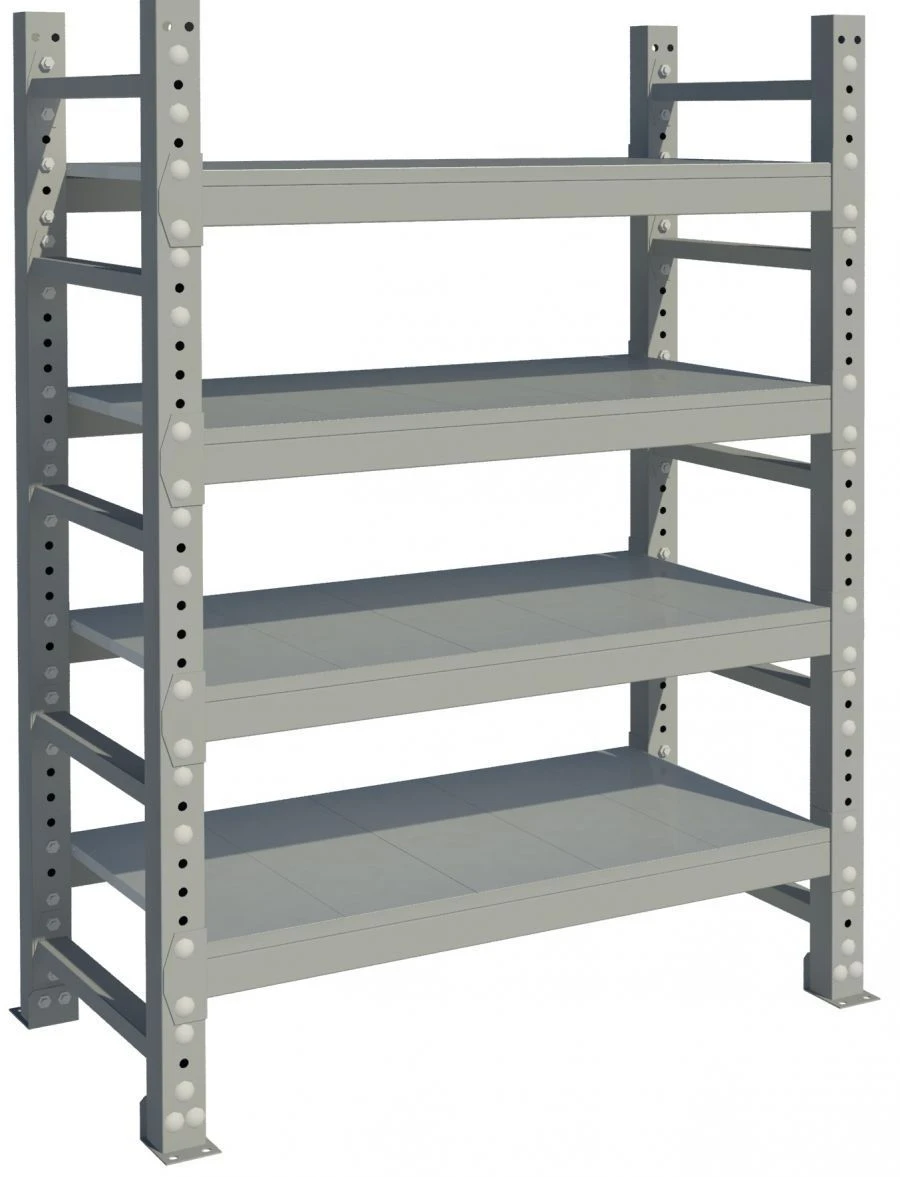

Cargo shelving unit STG-3

The rack is a collapsible frame of increased strength made of metal profile pipes, between which there are set decks, adjustable in height to adapt to the size of goods stored on them.
Complete set:
rack (4 pcs.) - made of 80x80x2 profile pipe, equipped with a metal footrest with holes for fastening.
tier (decking) - set, made of several sheets (from 3 to 8 pcs.) 2 mm thick with stiffening ribs, and cross pipes 70x50x2 mm; height adjustable (step 100 mm).
cross beams are made of 60x40x2 profile pipe.
Main technical data and characteristics
Max. distributed load per tier, kg..650
Total load (mah) on the rack, kg....2600
Number of tiers, pcs.4
Coating - powder enamel RAL-7035.
