Available for Import

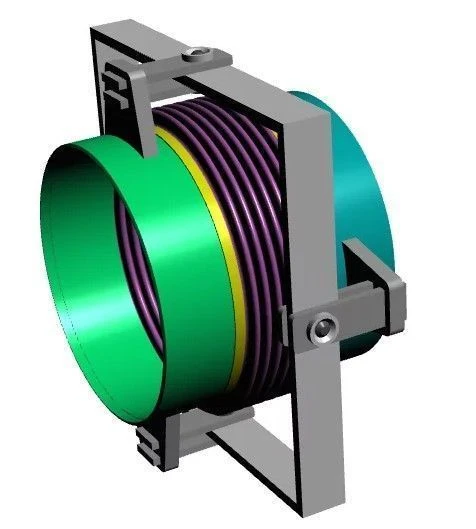

Cardan bellows compensator
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
The cardan bellows compensator compensates for angular movements of the pipeline and unlike the rotary compensator has a double number of force plates and axes of rotation located in two mutually perpendicular planes, fixed with a force cardan ring. The design of KSC allows to accept angular displacements in any directions. Restraining fittings connected to the connecting sockets (or flanges), accepts the spacing forces arising from the action of internal pressure on the bellows, as well as loads arising in pipeline systems at temperature deformations, and does not transmit them to the pipeline, fixed supports and equipment..
Technical Specifications
| Availability of KOF | At the customer's request |
|---|---|
| Design temperature | 900 °C |
| Hull steel grade | st.20, 09G2S, 15GS, 16GS, 17G1S, 17G1S-U, 20K, st3sp, 08X18N10T, 12X18N10T. |
| ND basic | ?? 28.14.20-003-28746959-2022 |
| Structural design | With inner screen, without inner screen, with cover, without cover. |
| Manufacturer | OOO "Flex-compensator-trade" |
| Design temperature | 900 °C |
| Pressure | 0...10 MPa |
| nominal diameter | 40...4500 mm |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
