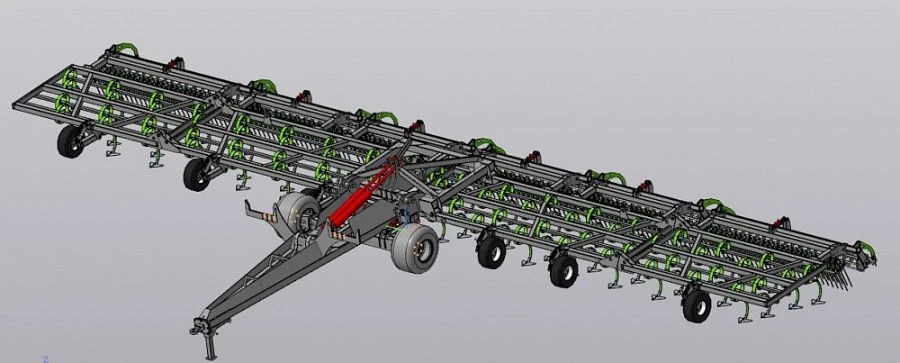

Carbon K 20000 Cultivator for Efficient Soil Tillage and Preparation

Cultivator Machines

Manufacturer: BLOCK OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Cultivator Carbon K 12000 Cultivator Carbon K 10000 Cultivator Carbon K 18000 Cultivator Carbon K 14000 Carbon K 6000 cultivator

Description

"Cultivator Carbon K 20000" - the basic model, an implement with a working width of 20 m, equipped with lancet tines with a working width of 265 mm, lancet tine spacing of 225 mm. The cultivator is designed for use in agricultural production in various soil and climatic zones for cultivation of soil not clogged with stones to a depth of up to 12 cm. The cultivator is equipped with a loop consisting of spring harrow modules, rollers and levelling bars. The cultivator has a three-link frame structure, articulated to the bottom, working tools, support and copying wheels, hydraulic system consisting of oil lines, high-pressure hoses and hydraulic cylinders. The frame structure elements are equipped with additional equipment - chocks, cleaner, clearance shields, slow-moving vehicle sign, transport speed limit sign, warning inscriptions and applications. The cultivator can be coupled with wheeled tractors.

Specifications

Type of product according to PP RF 616

Cultivators

Width

20500 mm

Height

1400 mm

Length

8800 mm

Working width

20 m

Material of working elements

50hgfa steel, 30MnB5 steel

Material of frame structures

09g2s steel, 40x steel

Number of working orans

88 pcs

Capacity per hour

Operating speed

B1/B8 2100/900 MHz

Width of lancet tines

265 mm

Length in transport position

6500 mm

Width in transport position

4400 mm

Height in transport position

4000 mm

Pitch of the lancet tines

225 mm

Number of loop rollers

8 pcs

Diameter of stub rollers

305 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
