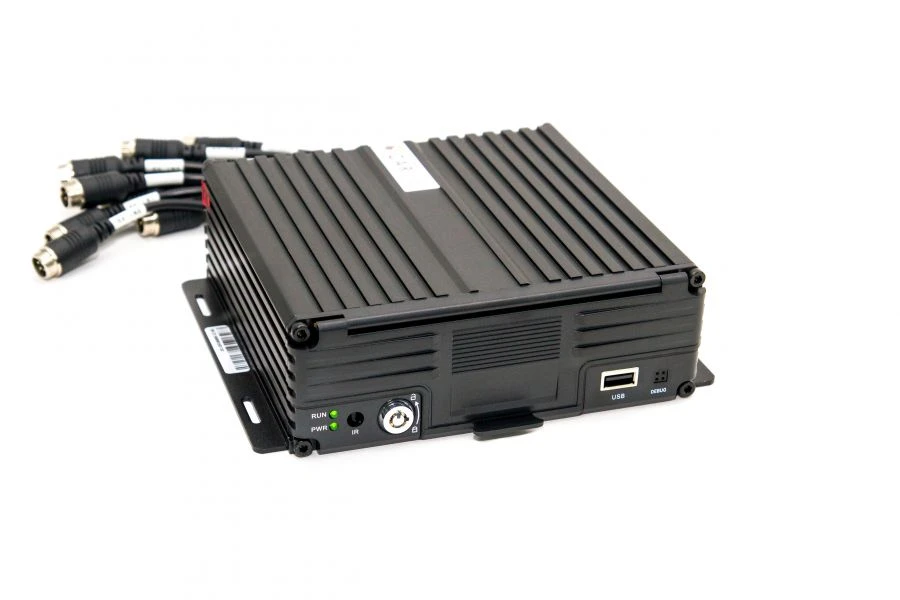

Car video recorder CARVIS MD-448HDD Lite

Wearable Video Systems

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Car DVR CARVIS MD-448HDD Lite is designed to record, store and playback video and audio information transmitted by connected to it video cameras. The main characteristics of the DVR include: support for connecting up to 8 analogue/HD (720p) or Full HD (1080p) cameras, compatibility with AHD, TVI and CVI formats, the ability to perform in hybrid mode for a combination of analogue and HD/FullHD cameras (channel-by-channel switching). DVR supports connection of 2 additional IP cameras. Video and audio recording is made on HDD/SSD up to 2/4TB + SD-card up to 1TB.

Technical Specifications

Language	Russian, English
User Interface	GUI, mouse support (wireless)
Safety	User and administrator passwords
Video standard	PAL, NTSC
Compression	H.264, H.265
Video resolution (total frame rate)	8 x CIF/D1/960H/720P (200 fps), 1080P (120 fps)
Modes	8 x AHD/TVI/CVI/Analogue (1080P) cameras + 2 x IP camera (1080P) - channel switching
Entry	8 pc
Output	2 pc
Display on the screen	1, 2, 4, 8, 9 channels, channel activation on alarm
Compression	G711A/G711/G726/MG726/ADPCM/IMA
Entry	8 pc
Output	1 pc
Recording mode	Synchronized audio and video recording
Record type	Manual shooting, scheduled shooting, alarm recording , recording over recorded material, alarm recording/photos
Digital video stream rate	1...4096
Digital audio stream rate	8
Data carrier	Support 1 x HDD up to 2TB or 1 x SSD up to 4TB (2.5" form factor, less than 10mm thick) and 1SD card up to 1TB (not included).
Record Search	By channel, time, type
Playback	1, 4-channel file playback
Power-on mode	Switching on by ACC signal, on schedule.
Shutdown mode	Delayed switch-off on ACC signal, scheduled switch-off
Video input	8 - aviation interface
Video output	1 - aviation interface, 1 - VGA
Audio input	8 - aviation interface
Audio output	1 - aviation interface
SD card	1 x SDXC up to 1TB (not included)
HDD/SSD	1 HDD/SSD up to 2TB, hot-swappable (not included)
IR receiver	Check (supports remote)
Alarm input	4 digital inputs (positive/negative trigger can be set)
Alarm output	1 pc
RS232 (UART)	1 LVTTL
USB	1 USB2.0 port (support USB drive, USB hub, mouse including wireless)
Ethernet	2 x GX16 12M-6 (10M/100M)
Indication	PWR (power supply), RUN (operation)
Locking lock	1 pc
Debug port	1 pc
Update mode	manual, automatic
Renewal method	USB, SD card
GPS/Glonass (optional)	Antenna plug detection on/off/short-circuit detection
4G (optional)	LTE/HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA
Wi-Fi (optional)	802.11 b/g/n, 2.4 GHz
Ethernet	Connection of 2 x IP cameras/1 x router (when connecting to monitoring service - licence required)
Hard disk heating (optional)	Yes (heating element warming HDD compartment at low temperatures)
CARVIS player for PC	Video/audio playback from HDD/SD card, catalogue playback. View car location on the map, logger event log.
License for Program for microcontroller for CARVIS car video recorder	Availability (non-exclusive)
License of connection to the Software Platform for Video Telematics of Mobile Objects	Availability (non-exclusive)
Delayed shutdown after complete power failure (ionistors)	Got it
Hot swap media	Got it
Intelligent power management	Yes (the device will turn off automatically when low battery voltage is detected and will turn on when the voltage is restored)
Detecting and isolating faulty hard disk sectors	Yes (provides longer hard disc life)
Rechargeable RTC battery	Yes (no need to replace the system battery, life is unlimited)
Mirror duplication of information	Yes (in additional flow)
Storage of 1 camera per hour (at fixed bitrate)	960H - 750 Mbps/hour; 720P - 1.1 Gbps/hour; 1080P - 2.2 Gbps/hour.
G-sensor	Got it
Motion detection	Got it
Restarting the recorder by time	Got it
Access Point Mode	Got it
CARVIS MA-100 Expansion Module Support	Got it
IP camera	Подключение 2-х IP камер
Short-circuit protection of the power supply of the recorder and peripherals	Got it
Power input	DC 8 - 36 V
Power output	12 V, 5 V 300 mA
Power consumption	Standby 3mA; maximum consumption 30W: 12V 2.5 A or 24V 1.25 A
Operating temperature	- 40'C ... +70'C (excluding HDD operating temperature)
Size, mm	162x187x56
Equipment	Video-recorder, power cable, alarm input loop, mouse, LAN - 6 pin (mum) adapter-2pcs, fixing screws, HDD mounting screws, keys, passport.
