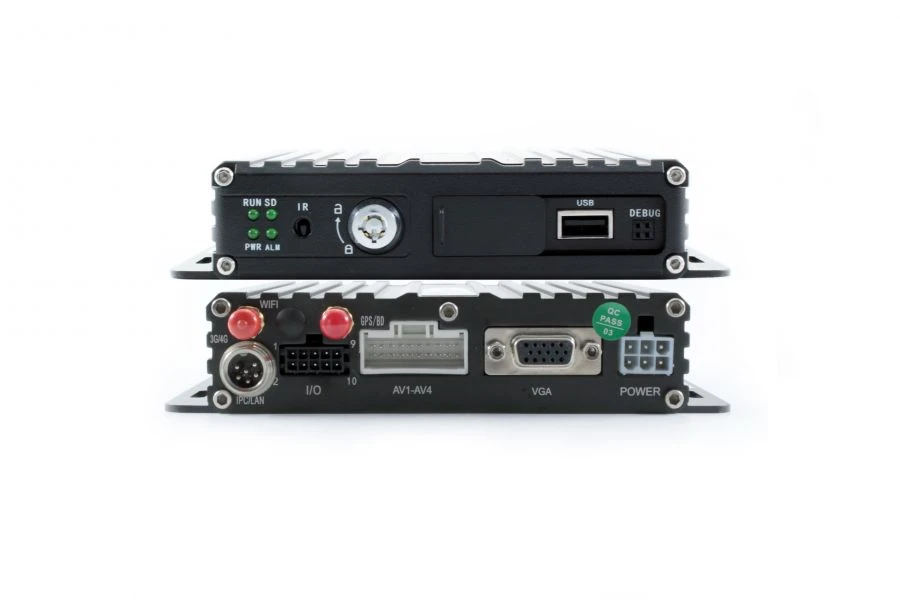

Car video recorder CARVIS MD-444SD
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
CARVIS MD-444SD 4-channel car video recorder is a reliable and certified device that meets the requirements of ? 969 PP RF, to ensure security and video surveillance in transport. Key Features: Support for up to 4 analogue, 4 HD (720p) or 4 Full HD (1080p) cameras; Compatible with AHD, TVI and CVI formats; Hybrid mode for combining analogue and HD cameras; Connection of an additional IP camera. The model is ideal for recording events on SD card for further analysis. Certificate PP RF ? 969 makes it indispensable for passenger and cargo transport, transporting dangerous goods
Technical Specifications
| User Interface | Graphical interface with mouse support (wireless) |
|---|---|
| Safety | User and administrator passwords |
| Language | Russian, English |
| Display on the screen | 1, 2, 3, 4 channels, activation of channel by alarm |
| Output | 2 pc |
| Entry | 4 pc |
| Modes | 4 x AHD/TVI/CVI/Analogue (1080P) cameras + 1 x IP camera (1080P) - channel-by-channel switching |
| Video resolution (total frame rate) | 4 x CIF/D1/960H/720P (100 fps); 4 x 1080P (60 fps) |
| Compression | H.264, H.265 |
| Video standard | PAL, NTSC |
| Recording mode | Synchronized audio and video recording |
| Output | 1 pc |
| Entry | 4 pc |
| Compression | G711A/G711/G726/MG726/ADPCM/IMA |
| Record type | Manual shooting, scheduled shooting, recording over recorded footage, alarm recording/photos |
| Data carrier | SD card up to 1TB (not included) |
| Digital video stream rate | 216 kbps up to 4096 Mbps |
| Digital audio stream rate | 8 |
| Record Search | By channel, time, type |
| Playback | 1, 4-channel file playback |
| Power-on mode | Switching on by ACC signal, by schedule |
| Shutdown mode | Delayed switch-off on ACC signal, scheduled switch-off |
| Update mode | manual, automatic |
| Renewal method | USB, SD card |
| Video input | 4 - aviation interface |
| Video output | 1 - aviation interface, 1 - VGA |
| Audio input | 4 - aviation interface |
| Audio output | 1 - aviation interface |
| SD card | 1 x SDXC up to 1TB (not included) |
| IR receiver | Check (supports remote) |
| Alarm input | 4 digital inputs (positive/negative trigger can be set) |
| Alarm output | 1 pc |
| RS232 (UART) | 1 LVTTL |
| USB | 1 USB 2.0 port (support USB disc, USB hub, mouse, including wireless) |
| Ethernet | 1 x GX16 12M-6 (10M/100M) |
| Indication | PWR (power supply), RUN (operation), SD (SD card), ALM (alarm) |
| Locking lock | 1 pc |
| Debug port | 1 pc |
| Optional SD slot (optional) | Second SD slot for DVR to support 2 SD cards up to 1TB each (total capacity up to 1000GB) |
| Ethernet | Connecting 1 x IP Camera/1 x Router |
| Wi-Fi (optional) | 802.11 b/g/n, 2.4 GHz |
| 4G (optional) | LTE/HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA |
| GPS/Glonass (optional) | Antenna plug detection on/off/short-circuit detection |
| CARVIS player for PC | Video/audio playback from SD card, playback from catalogue. View car location on the map, event log of the recorder. |
| License for Program for microcontroller for CARVIS car video recorder | Availability (non-exclusive) |
| License of connection to the Software Platform for Video Telematics of Mobile Objects | Availability (non-exclusive) |
| Delayed shutdown after complete power failure (ionistors) | Got it |
| Hot swap media | Got it |
| Intelligent power management | Yes (the device will turn off automatically when low battery voltage is detected and will turn on when the voltage is restored) |
| Rechargeable RTC battery | Yes (no need to replace the system battery, life is unlimited) |
| Mirror duplication of information | Yes (with optional SD module in additional thread) |
| Storage of 1 camera per hour (at fixed bitrate) | 960H - 750 Mbps/hour; 720P - 1.1 Gbps/hour; 1080P - 2.2 Gbps/hour. |
| G-sensor | Got it |
| Motion detection | Got it |
| Restarting the recorder by time | Got it |
| Wi-Fi hotspot mode | Got it |
| CARVIS MA-100 Expansion Module Support | Got it |
| IP camera | Connecting 1 x IP Camera |
| Short-circuit protection of the power supply of the recorder and peripherals | Got it |
| Power input | DC 8 - 36 V |
| Power output | 12 V, 5 V 300 mA |
| Power consumption | Standby 8.5 mA; maximum consumption 18 W: 12V 1.5 A or 24V 0.75 A |
| Operating temperature | - 40C +70C |
| Size, mm | 142x153x32 |
| Equipment | Video-recorder, power cable, camera and monitor switching loop, alarm input loop, LAN - 6pin (mum) adapter - 1 pc, mouse, fixing screws, keys, passport. |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
