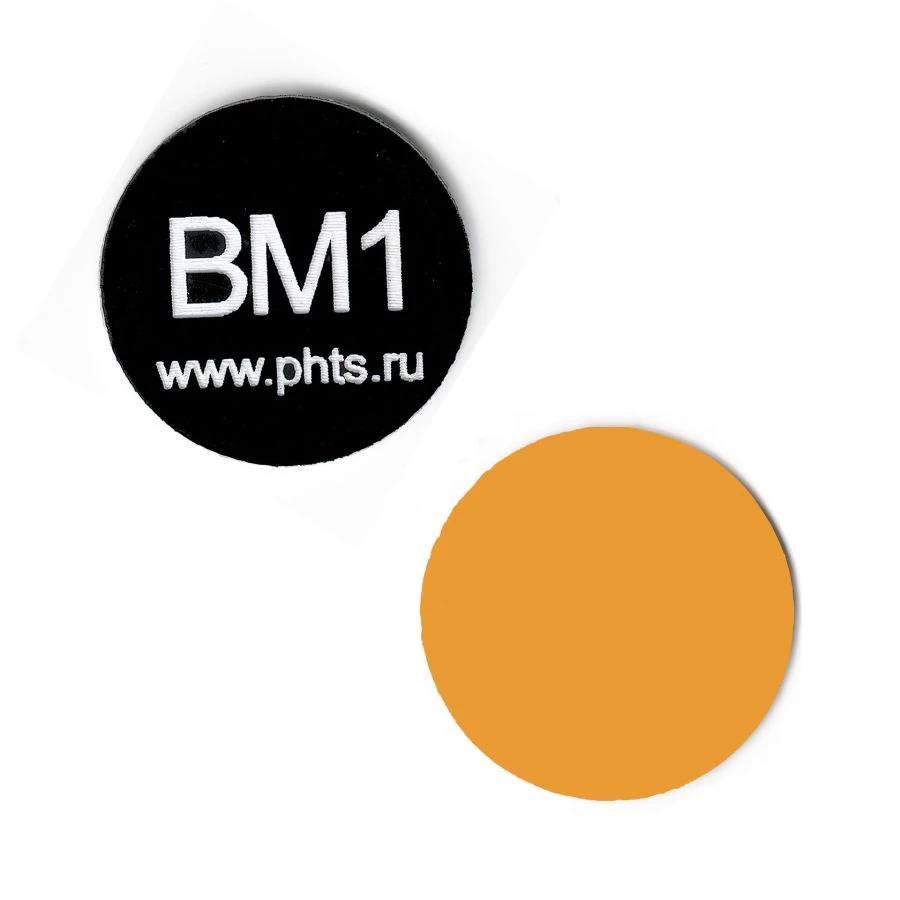

Calibration Fluorescent Target VM1-2 for Precision Laser System Calibration

Specialised Optical Devices

Manufacturer: PHOTONTECHSYSTEM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The VM1 series calibration target allows you to calibrate laser systems with minimal impact on the optical circuitry of the device. The target is made of recombination phosphor and is capable of converting laser radiation in the wavelength range up to 1.5 µm. Due to the polymer base these targets are more resistant to physical damage and moisture. The possibility of customised ordering allows you to tailor the target to your specific application. Features: can be ordered to individual sizes to suit the needs of the customer; easy to use; requires recharging with visible light.

Specifications

Diameter of the detection area

25.4 mm

Daylight charging is required

Armoured glass

Polymer type

IK1

Spectral range, µm

0,75-1,5

Failure threshold, mW/cm^2

>700

Sensitivity, ?W/cm^2

<6 (@808 nm), <2 (@960 nm), <250 (@1470 nm)

Glow color

Red-orange

Possibility of manufacturing according to individual dimensions

Armoured glass
