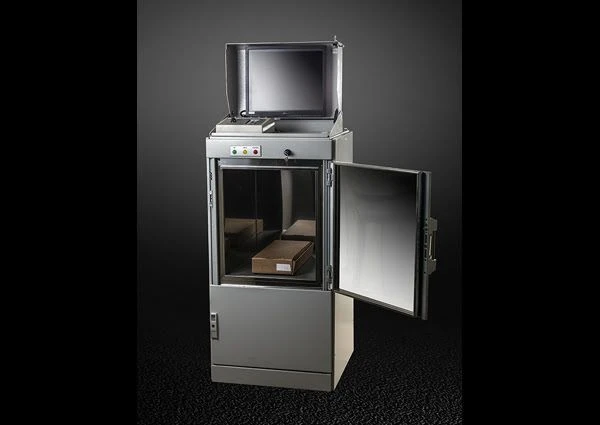

CALAN-2M Stationary X-ray Television System for Security Inspections

Advanced Inspection Devices

Manufacturer: DIAGNOSTIKA-M LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The stationary X-ray unit with dual energy mode KALAN-2M is designed for examination of individual items (parcels, parcels, parcels, hand luggage, etc.) in order to detect explosive devices, cold and firearms, as well as other prohibited items. Full radiation safety of the unit allows to operate it as a means of entrance control and to place it in any service premises (in enterprises, offices, etc.). KALAN-2M can operate in the mode of recognition of groups of substances, which can be used to separate them into organic and inorganic, as well as in the mode of automatic selection of suspicious areas.The unit has small overall dimensions, modern design.

The housing is equipped with a mobile base for moving the unit within the room by one operator. All basic functions on the control of the installation are available on the remote control, which greatly simplifies the work of the operator.

Specifications

Type of product according to PP RF 616

Other tools and instruments for measurement, inspection and testing

Power supply: AC mains, frequency

110 to 240 V, 50/60 Hz

Weight of the machine in transport packaging, kg

275 kg

Overall dimensions of the installation, mm

610x610x1380 mm

Maximum permissible humidity, % at 25°?

80 %

Operating temperature range, °C

+5 to +40 °C

Maximum anode current respectively, A

0,00001 / 0,00005 A

Voltage adjustment range for RI-100MH/RI-120 transmitters, kV

30 to 100/ 45 to 120

Dose rate at a distance of 10 cm from the outer surface, µSv/h.

Not more than 1.0

Inspection capacity, images per hour

120 pcs

Detection of single steel wire / with geometric magnification of 8 times, mm

0,1/0,02 (with RI-100MH transmitter) mm

Maximum thickness of controlled products (Al/Fe equivalent), mm*

70/16 mm

Maximum mass of the controlled object, kg

16 kg

Maximum overall dimensions of the investigated object, mm

440x520x550 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
