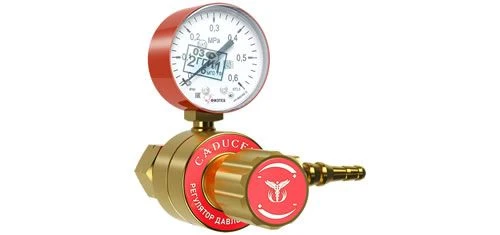

Caduceus BPO-5 Propane Pressure Regulator for Effective Gas Management

CADUCEUS BPO-5 propane reducer is a device used to reduce the pressure of propane coming from a cylinder to a preset value, as well as for its regulation and automatic maintenance at a constant level. The maximum throughput capacity of the cylinder pressure regulator is 5 m³/h, with the highest value of gas pressure at the inlet to the reducer can reach the value of 2.5 MPa, and the highest operating pressure is 0.4 MPa. Pressure values at the reducer outlet are quickly and accurately determined by means of a pressure gauge, which the device is equipped with.

CADUCEUS BPO-5 single-stage propane cylinder pressure regulator is connected by means of a union nut SP 21,8x1/14 LH (left) with PTFE seal. The universal nipple allows connection of gas hoses 6/9 mm.
