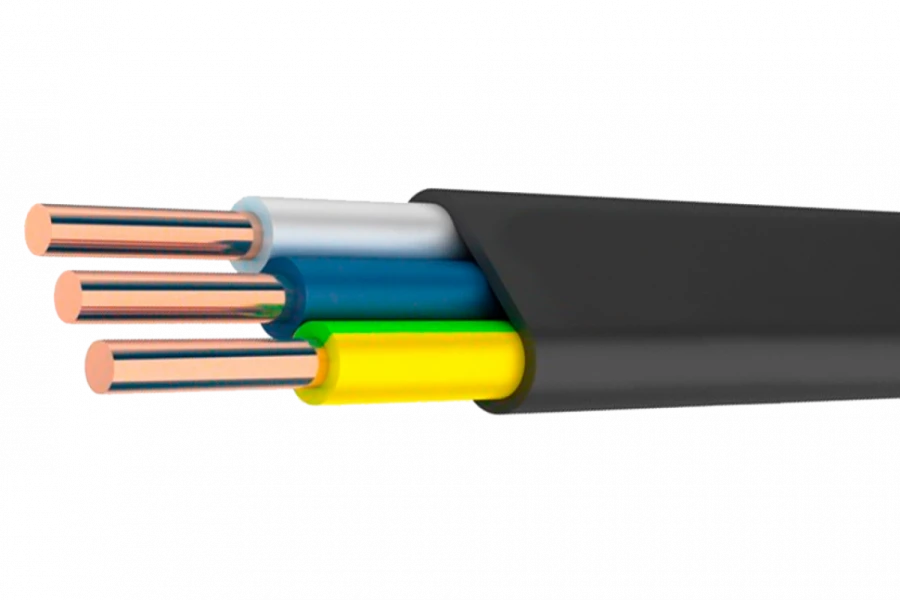

Cable VVG-Png(A)-LS-0,66-TU 27.32.13-002-05459832-2018 (Power cable with copper conductors, with insulation and sheathing made o
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Power cables for rated voltage 0,66 kV, with copper conductors number from 2 to 3 inclusive, cross-section from 1,5 mm2 to 10 mm2 inclusive, with insulation and sheathing made of polyvinylchloride plasticate, reduced fire hazard, not spreading combustion in category A, flat, grade VVG-Png(A)-LS. The products are manufactured in accordance with TU 27.32.13-002-05459832-2018 "Power cables with plastic insulation for rated voltage 0,66 and 1 kV. Technical conditions". Serial production. Conforms to the requirements of ?? ?? 004/2011 "About safety of low-voltage equipment". OKPD 2 OK 034-2014 code: 27.32.13.111
Specifications
Rated AC voltage
0.66 kV
Material of conductive cores
Copper rod
Insulation material of conductive cores
polyvinyl chloride plasticate
Availability of reservations
no
Armor type
no
Outer sheath material (if no armor)
polyvinyl chloride plasticate
Material of protective hose (if armor is available)
no
Availability of metal screen
no
Fire hazard class
?1?.8.2.2.2; ?1?.8.2.2.2
Cable cross-sectional shape
Round
Design of conductor core(s)
Monofilament
Nominal cross-section of conductive cores
10 mm2
Number of conductive cores
3
Mark
Power cable
Design
Number of cores and cross section
Cable shape
Flat
Core material
Copper rod
Insulation material
polyvinyl chloride plasticate
Sheath material
polyvinyl chloride plasticate
Core diameter
3.5 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
