Cable KGVEV/ng(A)/ng(A)-LS/ng(A)-FRLS
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

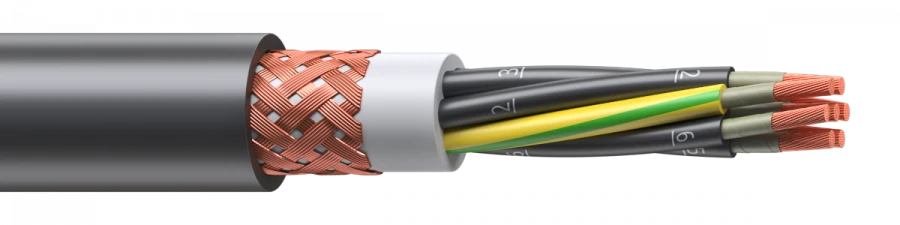

Flexible cables with polyvinylchloride insulation and sheathing, not spreading combustion and fire-resistant, designed for transmission and distribution of electricity in power circuits and circuits of control and management on machines and mechanisms at voltage 0,66 and 1 kV AC frequency of 60 Hz or DC voltage up to 1000 and 1500 V respectively, used for non-stationary laying.
Service life - not less than 30 years. at operation in the temperature range from minus 50 to +50°C. For cables with index XL - from minus 60 to plus 50 °?.
Service life - not less than 30 years. at operation in the temperature range from minus 50 to +50°C. For cables with index XL - from minus 60 to plus 50 °?.
Specifications
Insulation material
- for KGVEV/ng(A)-LS/ng(A)-FRLS polyvinylchloride plasticate of reduced fire hazard; - for KGVEVng(A) polyvinylchloride plasticate
Core material
copper multi-wire (class 4 according to GOST 22483)
Winding
for ??????/??(?)-FRLS mica-containing tape
Twisting
insulated cores of cables are twisted into a core
Inner shell
- for KGVEV/ng(A)-LS/ng(A)-FRLS polyvinylchloride plasticate of reduced fire hazard; - for KGVEV/ng(A) polyvinylchloride plasticate
Screen
copper wire
Outer shell
- for KGVEV/ng(A)-LS/ng(A)-FRLS polyvinyl chloride plasticate of reduced fire hazard. - for KGVEV/ng(A) polyvinylchloride plasticate of reduced flammability.
Numerical marking of insulated conductors
Insulated conductors of cables are digitally marked (starting from 1) to identify each conductor during installation. The index "G" in the markings indicates the presence of a grounding conductor (green-yellow)
Section
0.5 to 50.0 mm²
Number of cores
1 to 70
Fire hazard class
for KGVEVng(A)-FRLS according to GOST 31565-2012: P1b.7.2.2.2. for KGVEVng(A)-LS according to GOST 31565-2012: P1b.8.2.2.2. for KGVEVng(A) according to GOST 31565-2012: P1b.8.2.5.4.
Voltage
0.66 and 1 kV
Climatic version
Climatic version B, placement categories 2-5 according to GOST 15150-69
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
