Cable for signalling and interlocking, with water-blocking elements, not spreading combustion, in sheath or protective hose
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

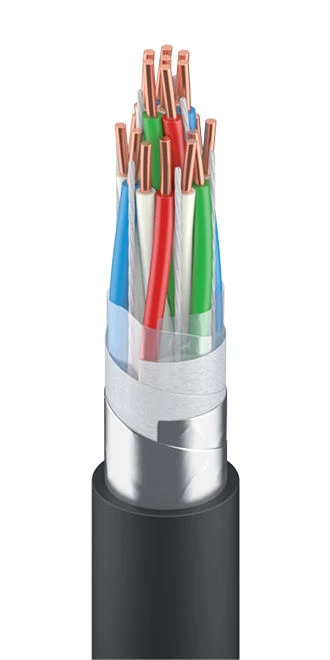

Cable for signalling and interlocking with conductive cores of copper wire with diameter 0,9; 1,0, number of cores from 3 to 61 and number of pairs from 3 to 30, with polyethylene insulation, with VB elements, with screen from alumoflex, with belt insulation from polyethylene terephthalate film, with thermal barrier from glass tape, with sheath from polymeric halogen-free composition Cables are intended for electrical installations of signalling, centralisation and interlocking, fire alarm and automation
Specifications
Electrical resistance of halogen-free insulation of conductive cores, recalculated for 1000 m of length and temperature 20 C, no
B1/B8 2100/900 MHz
Electrical resistance of polyethylene insulation of conductive cores, recalculated for 1000 m of length and temperature 20 C, no
4000
AC voltage test with nominal frequency of 50 Hz for 1 minute between cores
2500 V
Operating temperature range
-40...60 °C
Rated AC voltage
380 V
