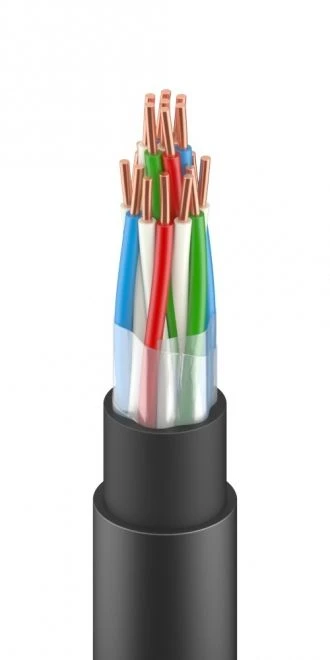

Cable for signalling and interlocking with polyethylene insulation in plastic sheath, mark SBPu
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Signalling and interlocking cable with copper conductive cores with diameter from 0,8 to 1,0 mm, with the number of cores and pairs from 2 to 42., with polyethylene insulation, in a thickened sheath of polyethylene. Cable for signalling and interlocking are designed for electrical installations of railway signalling, centralisation and interlocking, fire alarm and automation, for rated voltage 380 V AC 50 Hz or 700 V DC.
Specifications
Rated AC voltage
380 V
AC voltage test with nominal frequency of 50 Hz for 1 minute between cores
2500 V
Electrical insulation resistance of current-carrying conductors, recalculated per 1000 m length and temperature 20 C for cables
4000
Operating temperature range
-40...60 °C
Electrical insulation resistance of current-carrying conductors, recalculated for 1000 m of length and temperature 20 C for cabl
5000
