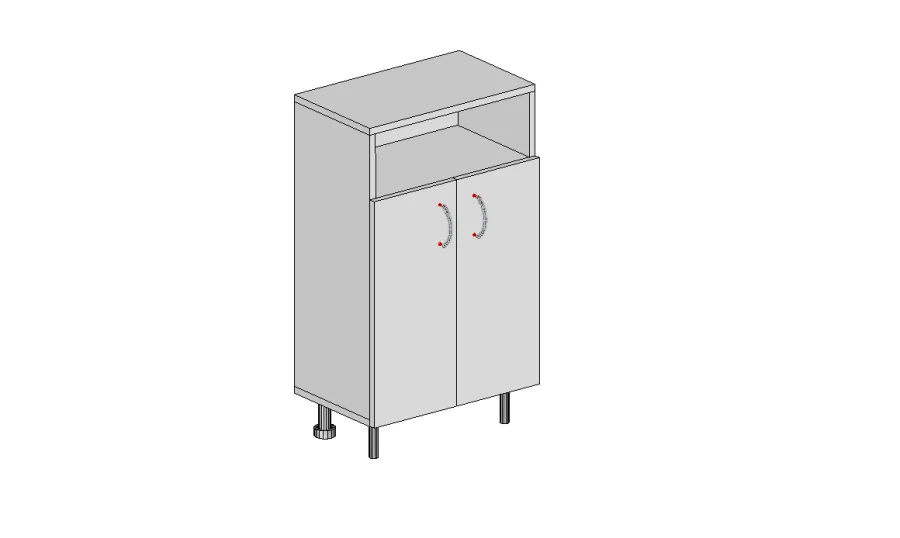

Cabinet GM 31.09.13.110.003.04.00

on passing horizontal walls on top open compartment, below compartment with removable shelf behind two hinged overhead doors. The rear wall is installed in the kerfs in the horizontal and vertical panels. The product is made of chipboard. All open non-mating ends of the parts are lined with PVC edging material. Doors are made of 16 mm thick MDF lined with thermosetting polymer film on the inside and glued with polymer film on the outside. The walls and shelves are fastened to each other using calibrated furniture screws with glue. Swinging doors are hinged on four-hinged hinges, which are fastened to the vertical walls with screws. The cabinet is on adjustable supports. Front supports two pieces d=30 H =100mm, metal, chrome finish. Rear supports two pieces plastic H=100mm. The handles are metal, chrome plated, screwed on the door. The cabinet is fixed to the wall on metal corners with screws
