Cabinet for gas cylinders SHG-2

Metal Storage Cabinets

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

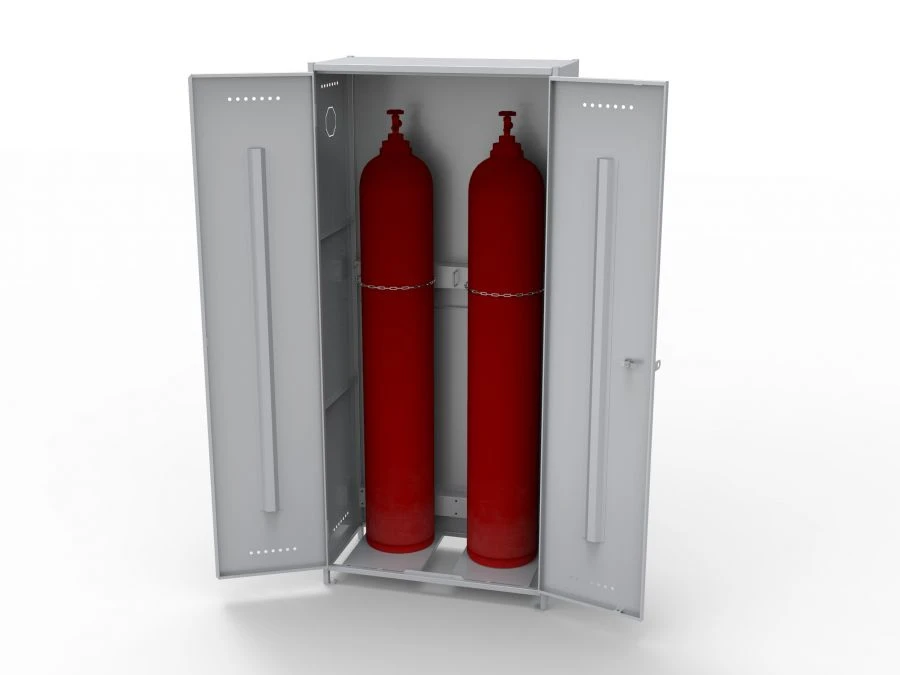

Shg-2 cabinet is designed for safe and convenient storage of up to 2 gas cylinders with height 1650 mm and width up to 300 mm.

The robust construction is due to the strong frame made of steel pipe lined with steel sheeting.
The bottom is reinforced with 3 crossbars made of profile pipe and covered with sheet metal.
A chain is provided to secure the cylinders.
The cabinet is equipped with a padlock eyelet and a three-way padlock.
In the upper part of the cabinet walls there is one hole D90 mm for cylinder connection.
To ensure ventilation, perforations are provided in the sides of the cabinet and in the doors above and below.
The height of cylinder placement in the cabinet is 70 mm.
There are D9 mm holes in the cabinet legs for fixing to the floor.

This cabinet is equipped with a flat roof. We can also offer a modification of this cabinet, cylinder cabinet SHG-2kr, which is equipped with a sloping roof, which prevents dust accumulation and simplifies wet cleaning..

Specifications

Type of product according to PP RF 616 Metal cabinets other

Weight 43 kg

Assignment for safe and convenient storage of up to 2 gas cylinders up to a height of 1650 mm and a width of 300 mm.

Depth 400 mm

Width 800 mm

Height 1800 mm

Frame type steel pipe 20x20 mm

Color gray

Material Steel

Housing type all-welded

Capacity 2 cylinders (H ? 1650 mm, Ø ? 300 mm)

Walls sheet steel 0.7 mm

Lock ledger with three-way locking + padlock eyelet

Hose openings 2 pcs, Ø90 mm

Perforation In sidewalls and in doors from top and bottom

Height of cylinder placement 70 mm

Cabinet bottom reinforced with 3 profile tubes

Coverage type powder

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
