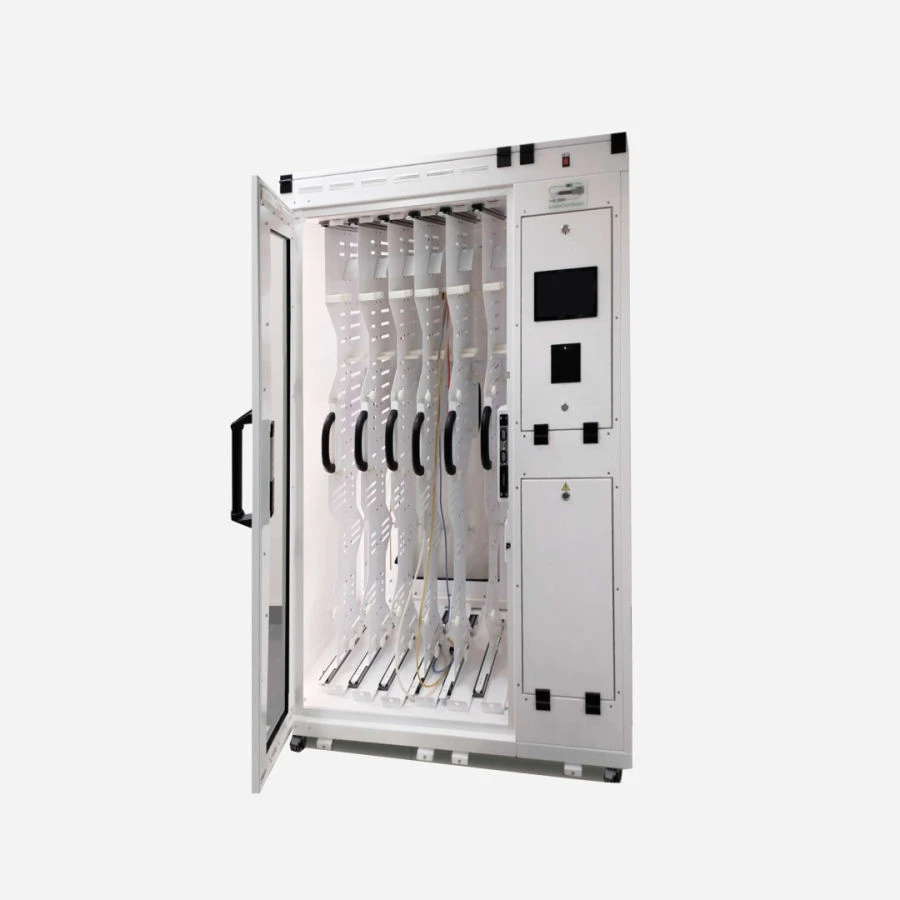

Cabinet for drying and storage of flexible endoscopes "KLINSCOPBOX", KLINSCOPBOX-6PRO

Medical Equipment Supplies

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The principle of operation of the cabinet is the forced supply of absolutely purified air into the storage compartment and channels of flexible endoscopes. The endoscope is placed on a special retractable holder, flexible fibroscopes and flexible video endoscopes are connected using a universal specialised adapter. Air flow movement is created by mechanical stimulation of the ventilation unit and oil-free compressors. The created storage conditions in the cabinet are 336 hours (14 days). Identification of data on the location of flexible endoscopes in the cabinet compartment is registered by the control system (tag, magnetic card, reader). The storage data is displayed on the touch screen and a special light indicator. Air purification stages create absolutely purified air: coarse purification filter; absolute purification filter; bacterial purification filter. The cabinet has the ability to connect to an external system of compressed air supply MO for blowing the channels of endoscopes.

Technical Specifications

Type of product according to PP RF 616	Medical devices, including surgical, other, not included in other groupings
Removable double-sided moisture tray under each pull-out holder	6 pc
Double-sided retractable endoscope holders with valve storage baskets	6 pc
Cupboard with one through compartment	Armoured glass
The fan unit ensures the supply of absolutely cleaned air passed through filters and maintains the overpressure in the	Armoured glass
Power supply 230V / 50 Hz	Armoured glass
Thermal printer	2 pc
Storage compartment doors with transparent window	Armoured glass
Housing material: powder coated stainless steel	Armoured glass
Technical compartment covers are equipped with keyed locks	Armoured glass
Removable protective skirt for the enclosure support base	Armoured glass
Method of placing endoscopes vertically	Armoured glass
Air preparation is carried out with coarse and fine filters	Armoured glass
Aseptic conditions are achieved with fine cleaning by HEPA filters	Armoured glass
Possibility to operate the cabinet autonomously (air flow production due to the block of fans and compressors)	Armoured glass
Possibility of simultaneous storage of endoscopes	6 pc
Technical air treatment compartment for the subsequent supply of absolutely purified air to the endoscope storage compartment	Armoured glass
Individual compressor for each air supply position for flexible endoscope channels	Armoured glass
Air curtain to cut off the external air environment from the aseptic air environment when the door is opened	Armoured glass
Possibility to connect the cabinet to a centralized air supply	Armoured glass
Endoscope storage compartment lighting	Armoured glass
Set of adapters for connecting endoscopes of different brands and models to the cabinet	Armoured glass
Color coding of air supply tubes to endoscope channels	Armoured glass
Electronic control unit with digital information display	Armoured glass
Display of filter runtime and storage time for each endoscope	Armoured glass
Color-coded endoscope storage time alarms	Armoured glass
Ability to identify each endoscope with a separate programmable tag	Armoured glass
Possibility of operator identification by means of a programmable magnetic card	Armoured glass
Ability to print checks with storage parameters via built-in thermal printer	Armoured glass
Overall dimensions, length	1340 mm
Overall dimensions, width	810 mm
Overall dimensions, height	1958 mm
Weight without endoscopes	280 kg
The endoscope storage compartment door is equipped with an electromagnetic lock	Armoured glass

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
