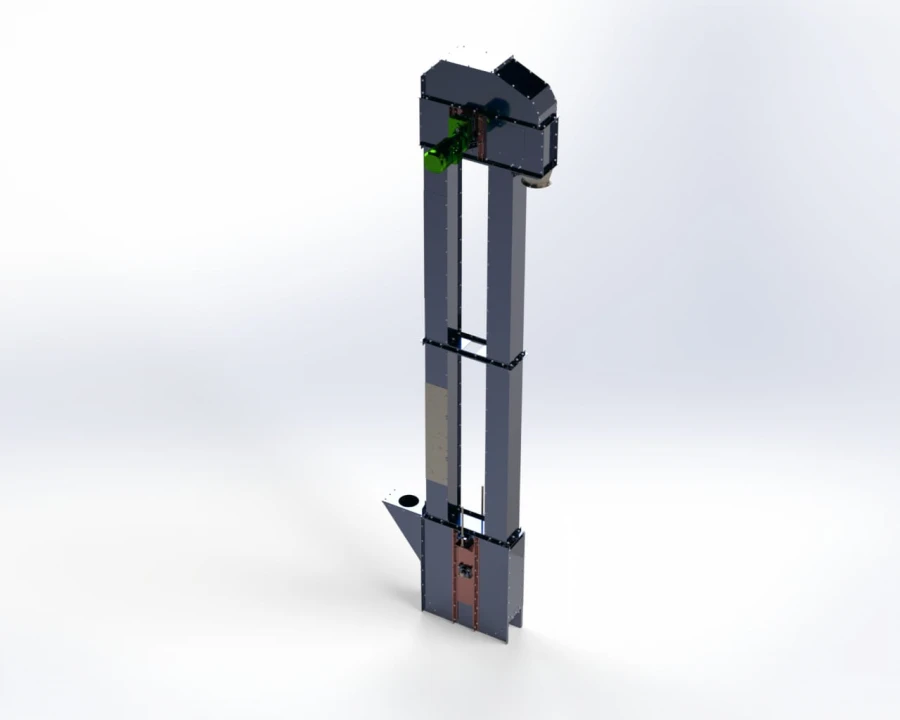

Bucket elevators - noria

Bucket elevators - elevators, models: N-25.2.50, N-50.2.50, N-100.2.50, N-150.2.50, N-350.2.50 - are selected in accordance with the customer's specifications by varying indicators (dimensions, productivity, total capacity). The elevators are designed for lifting grain crops, processed products, seeds and other bulk materials in a vertical or close to it plane. With the help of this equipment, products are loaded into containers at height. Design features, noria consists of: 1. "Shoe" in which an idle shaft with a wheel having a tensioning mechanism is mounted, 2. "Head", in which there is a drive shaft, where the gearmotor is attached, 3. Lower section, in which there is a window and holes for tensioning the conveyor belt, 4. Upper section, 5. Intermediate sections, 6. Conveyor belts, 7. Norium buckets. Advantages: Reliable construction. The body of the elevator is made of galvanised steel meeting the requirements of GOST 14918-80. This material can be easily processed (with...
