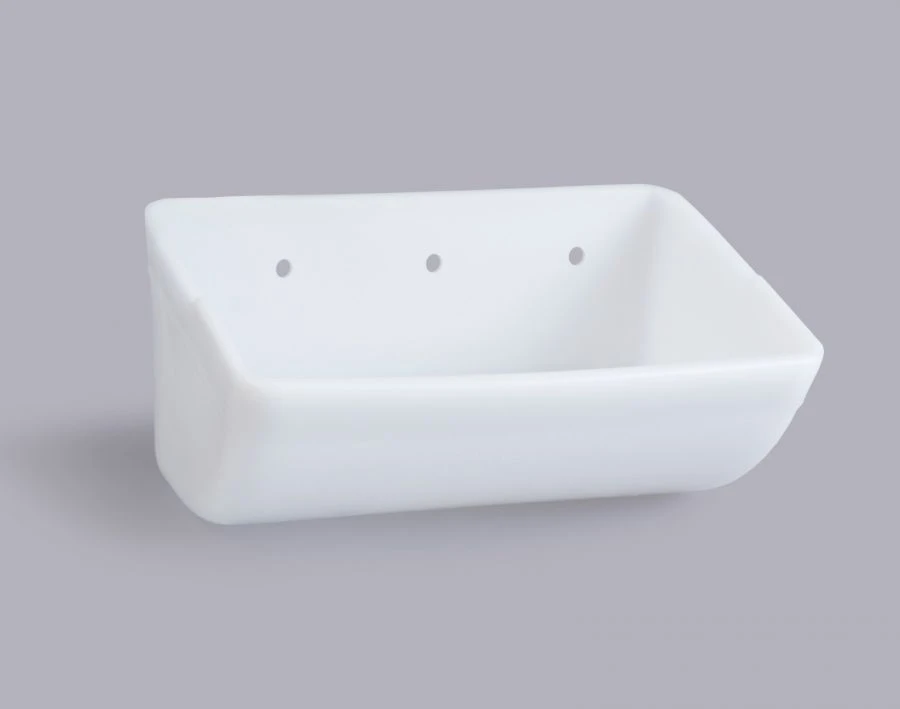

Bucket elevator RAV 175(31-214)

Bucket elevator RAV 175 (31-214) (width 315 mm, outreach 214 mm, height 165 mm). Centre distance 100 mm, 3 holes. Bolt for fastening m10*40. Bucket with a total volume of 6.3 litres, working volume of 5.0 litres.
The weight of the product is 1000 g.
Diameter of holes and inter-centre distance can be made according to customer's order.
Advantages of using polymer buckets:
1. explosion safety, as there is no possibility of a spark when the edge of the bucket touches the burr pipe;
2. grain and seeds are not injured due to the elasticity of the bucket edge;
3. energy consumption is reduced due to the low weight of the bucket.
4. adhesion of hard and wet products is excluded due to low adhesion of products to the polymer surface;
5. polymer buckets have considerable rigidity, do not change their geometric shape during operation, are corrosion-resistant and quiet in operation.
