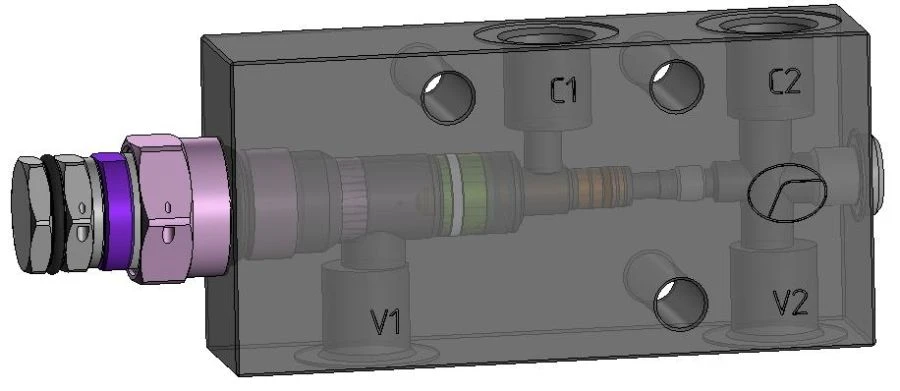

Brake Valve K1T35A038AKPV3VS for Flow Regulation and Dynamic Braking

Hydraulic Control Valves

Manufacturer: GIDRON LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Brake valve is a flow control device providing free flow passage in one direction and dynamic braking of flow in the opposite direction with blocking of return flow in the absence of control signal. The valves are designed to hold hydraulic motors in static position under load. Field of application - hydraulic drives of presses, machine tools, foundry and casting machines, mobile special machinery and other hydroficated equipment. Valve K1T35A038ACPV3BC with nominal flow rate of 35 l/min and maximum pressure of 350 bar is pipe mounted with connection thread G3/8 BSPP. Valve setting range 100-350 bar.

Specifications

Maximum pressure

Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording MPa

Material

Steel

Execution

Unilateral

Nominal flow rate, l/min

Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording

Pressure control range, MPa

10-35

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
