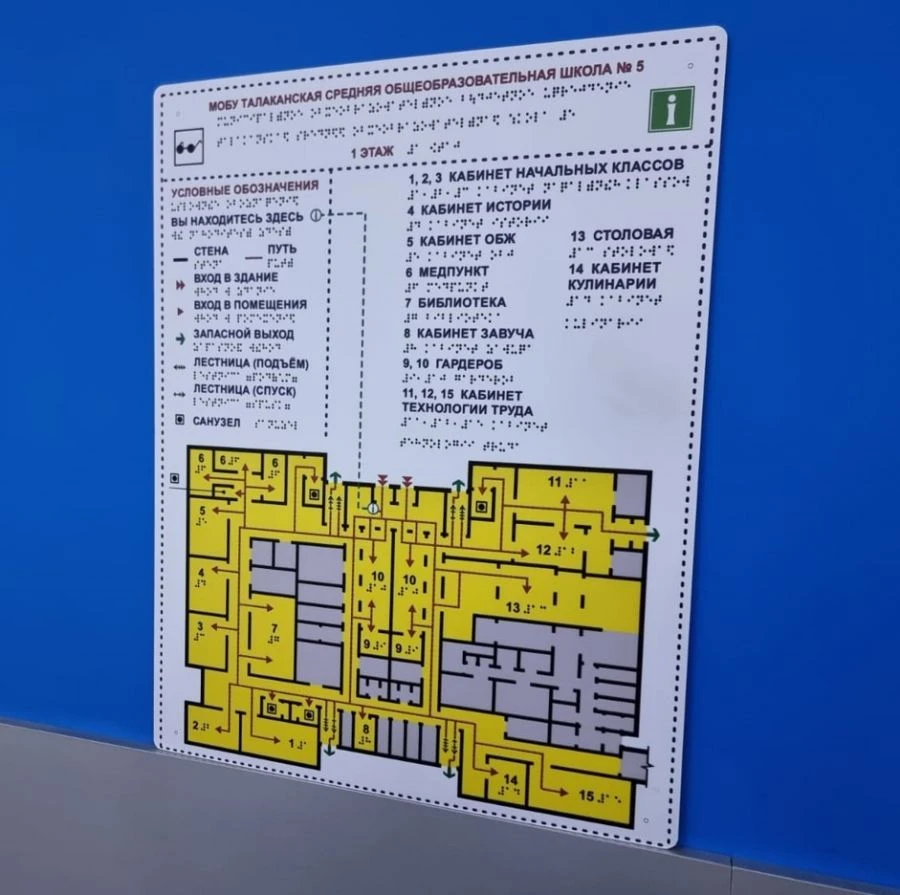

Braille tactile mnemonic scheme

All designations and text are printed in Cyrillic and duplicated in Braille, all elements are convex above the plane not less than 0,7 mm.
Requirements for the development of a mnemonic scheme: a diagram of the location of rooms in the building (usually a whole floor) with numbers and names of rooms (accessible to visitors) with the indication of evacuation routes in case of emergency.
Rooms accessible for disabled people should be marked on the diagram:
- cloakrooms;
- changing rooms;
- lifts;
- toilets;
- canteen.
It is installed at the entrance to the institution on the right side at a distance of 3 to 5 metres from the entrance, at a height of 1.2 metres from the floor.
It is recommended to place a copy of the evacuation plan next to the mnemonic scheme.
The standard dimensions of the product are:
- 321x411mm;
- 610x470 mm;
- 800x630 mm;
- 905x1150 mm.
At the customer's request, the mnemonic scheme can be made to any size and from different materials.
