Bottom scraper for horizontal sumps

Water Purification Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

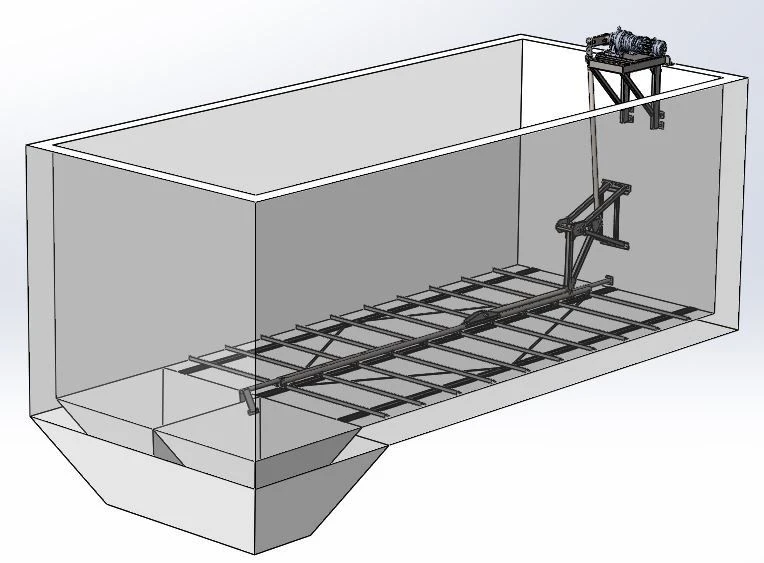

The bottom scraper is designed for raking sludge from the bottom of the horizontal lagoon into the collection pit. The scraper consists of a drive unit and a number of wedge-shaped profiles welded together to form a single unit so that they function as a moving floor in the tank. The principle of operation is based on the reciprocating motion of the wedge-shaped profiles on the bottom of the tank. During the forward movement, the sludge is transported to the sludge collector and during the reverse movement, the profiles move under the sludge layer. The backward movement is about twice as fast as the forward movement, which ensures continuous movement of the sludge. The scraper can be driven by an electric or hydraulic drive.

Specifications

Length of sump bottom Not more than 30 metres

Scraper width Not more than 8 metres

Maximum density of the sludge to be treated 0,5-6,0%

Water temperature 5...40 °C

Drive type Electric drive

Material of sliding plates PEHD1000

Metal parts Stainless steel 08?18?10, 12?18?10? or analogue

Fasteners ?4

Installed power 1.1 kW

Voltage, 380?

Frequency 50 Hz

Protection class IP55

Motor rotation speed 1500 rpm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
