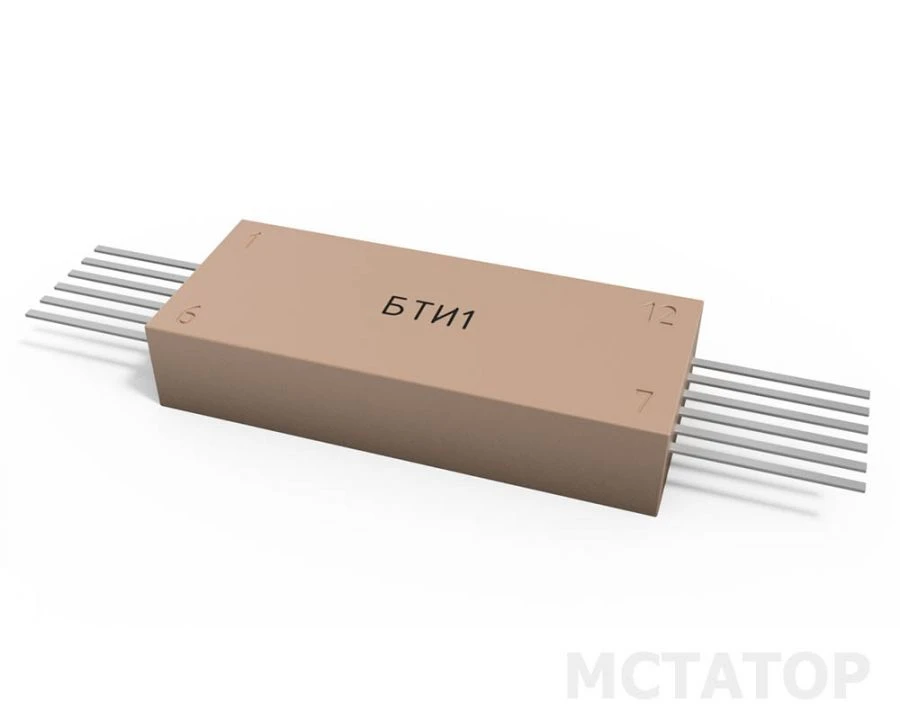

Blocks of impulse transformers of BTI1 type

Electric Transformers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Blocks of transformers pulse type BTI1 are designed for use in microelectronic equipment with operating voltage up to 10V and the product of pulse duration on the input voltage from 1.0 to 50.0 µs?V. Quality category "VP" and "OS".

Specifications

Insulation resistance, not less 100 (×10^6) ohm

Magnetizing current, not more 10 (×10^-3) A

Product of pulse duration by input pulse voltage 1.0 to 50.0 (×10^-6)

Number of transformers in the unit 2 pc

Number of windings of each transformer 2...3 pc

Primary winding inductance, not less than 0.1 to 5 (×10^-3)

Capacitance between primary and each secondary winding, not more than 20 to 220 (×10^-12)

Scattering inductance, not more 0.7 to 25 (×10^-6)

Electrical insulation strength: DC voltage 100 V
