Block of selector BS VABM.465287.005

Telecom Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Selector unit is designed for use as part of terminal trace devices (studios) and conference systems, with output to 4-wire PM channel in the organisation of corporate complexes of communication meetings.

Technical Specifications

PPM input / PDP output	Symmetrical with transformer isolation, R=600 Ohm
Уровень ПРМ/ПРД	-13dB/-13dB
Volume adjustment from channel to IRM (PDM level), operative	-60÷0 dB
Volume adjustment from IRM to IRM ("studio"), operative	-60÷0 dB
Volume adjustment from IRM to channel (PRD level), operative	-13÷0 dB

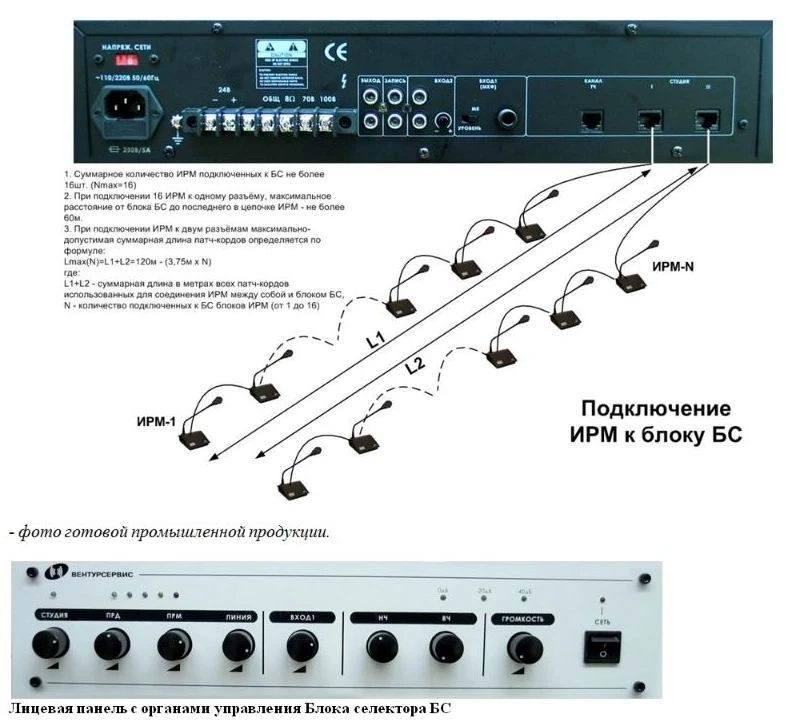

Maximum distance of IRM from selector unit with 16 connected IRM consoles	60 m (when the number of IRMs connected to one connector decreases, the maximum distance increases proportionally)
Number of microphone inputs	1 pc
Number of line inputs	1 pc
Reproducible frequency range	50-20000 Hz
Rated voltage at the line output	0,775 ?
Rated power amplifier output voltage	100V; 70V
Maximum output power, not less than	120 W
Rated impedance of acoustic systems	8 ohms
RMS harmonic coefficient, not more than	1%
Output signal-to-noise ratio not less than	75 dB
Power consumption from AC mains, not more than	220 ?
Overall dimensions	85x425x305 mm
Weight	8.5 kg
Product composition	Main module of selector block BS. Set of brackets with fasteners and cables to the BS selector unit. Power cord with euro plug. Telephone wall socket (TJCM-6p4c). Telephone cable (3 m) with 6p4s plugs on the ends, radio microphone RMK-900 VABM.300.215* in
Maximum number of IRMs connected to the BS unit	16

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
