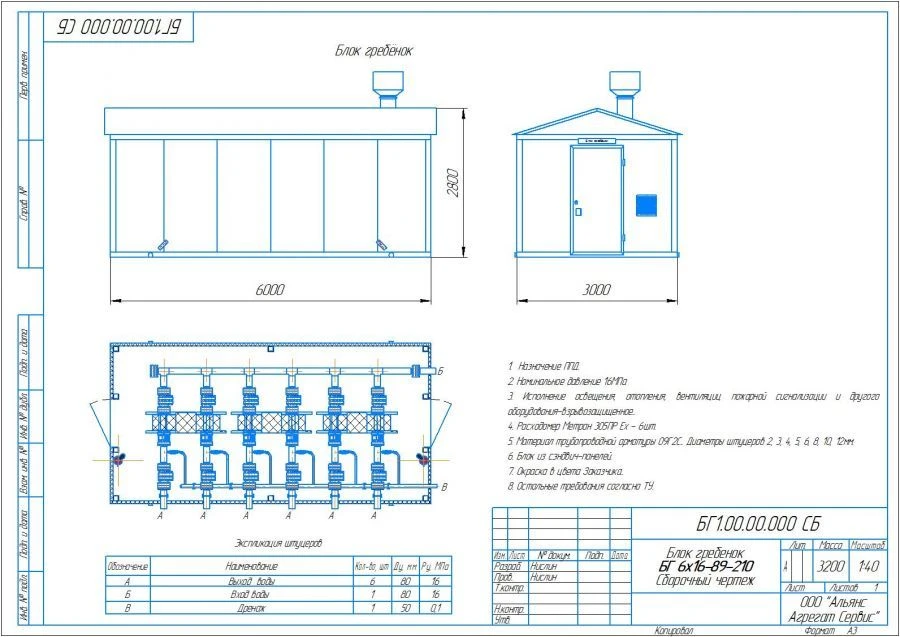

Block of pressure comb BG

Pressure comb units (comb units, water distribution units, water distribution points) designed for distribution of process water injected into injection wells of the reservoir pressure maintenance system, measurement of its pressure and accounting of its quantity if a water meter is included in the set. The pressure comb units (hereinafter referred to as "PG") are products with variable composition, the composition is formed by selecting the ordered sets, the composition of devices and equipment determined by the customer and based on the requirements of current regulatory documents. The composition of BG depends on the operating pressure, number of wells to be connected, nominal diameter of outlet branches, type of shut-off valves, availability of water meter, availability and type of room shelter, availability of heating. The requirements of these technical specifications are mandatory. The main operational limitations of BG application: (a)BGs are designed for operation in temperate or cold climate conditions in.....
