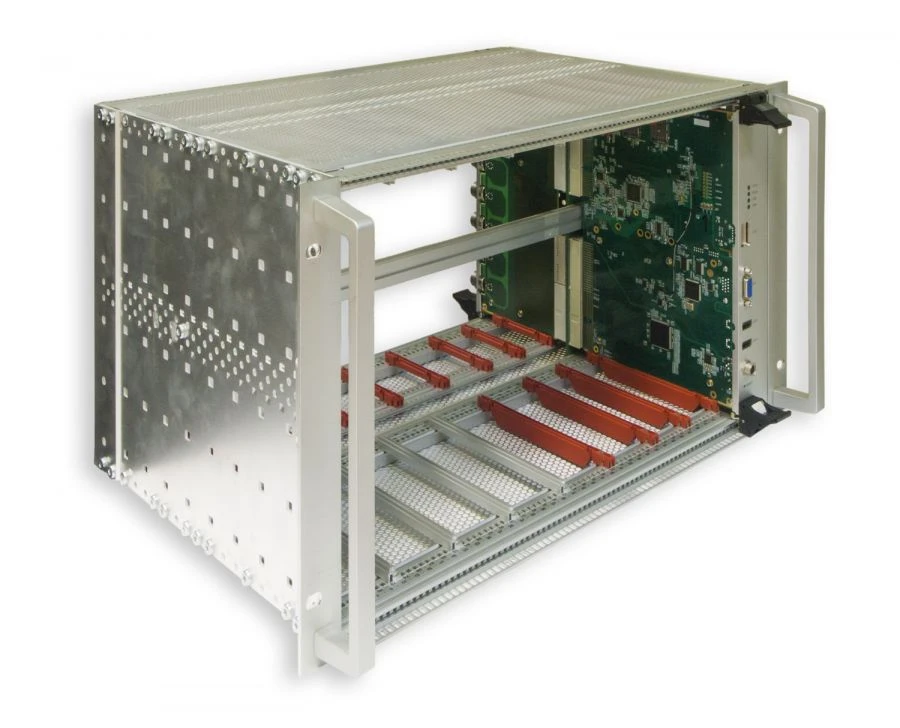

BK02 On-Board Computer for Efficient Device Communication in 6U Design
Manufacturer:
DOLOMANT OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
BK02 is designed for use as an on-board computer, made in the design "Euromechanics 6U" and provides:
-operation with external devices via interfaces 2 x RS485, 4 x CAN, 7 x Ethernet;
- output of graphic information to the external screen via LVDS and VGA interfaces;
- microphone connection, audio information output;
-connection of data carriers and HID-devices to USB ports.
-operation with external devices via interfaces 2 x RS485, 4 x CAN, 7 x Ethernet;
- output of graphic information to the external screen via LVDS and VGA interfaces;
- microphone connection, audio information output;
-connection of data carriers and HID-devices to USB ports.
Specifications
Processor frequency
1660
Designation
BK02
Processor
Intel Pineview-M (-D) Dual Core (D510)
RAM
2 GB.
FLASH disk
4GB NAND Flash (dual channel) connected to SATA interface
CPCI bus support
4 peripheral slots according to PICMG 2.0 R3.0 (32 bits, 33 MHz)
External interfaces
CAN2.1V - 4 channels; USB2.0 - 2 channels; Ethernet 1 Gb - 7 channels; RS232 - 2 channels (optional); RS485 - 2 channels; DIGITAL I/O - 6 input channels, 2 output channels; miniPCIe form factor for connection of MC7455 modem with possibility to install two
Capacity of CFast memory card
Up to 64GB.
DC supply operating voltage
plus 5 V
Power consumption
Not more than 25 W (without taking into account consumption of external devices connected to the unit)
Total power consumption of external devices connected to BC02
No more than 30 W
Operating conditions
Operating temperature range: from minus 50 to plus 50° C; relative humidity 98% at ambient temperature 25° C.
Size
6U
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
