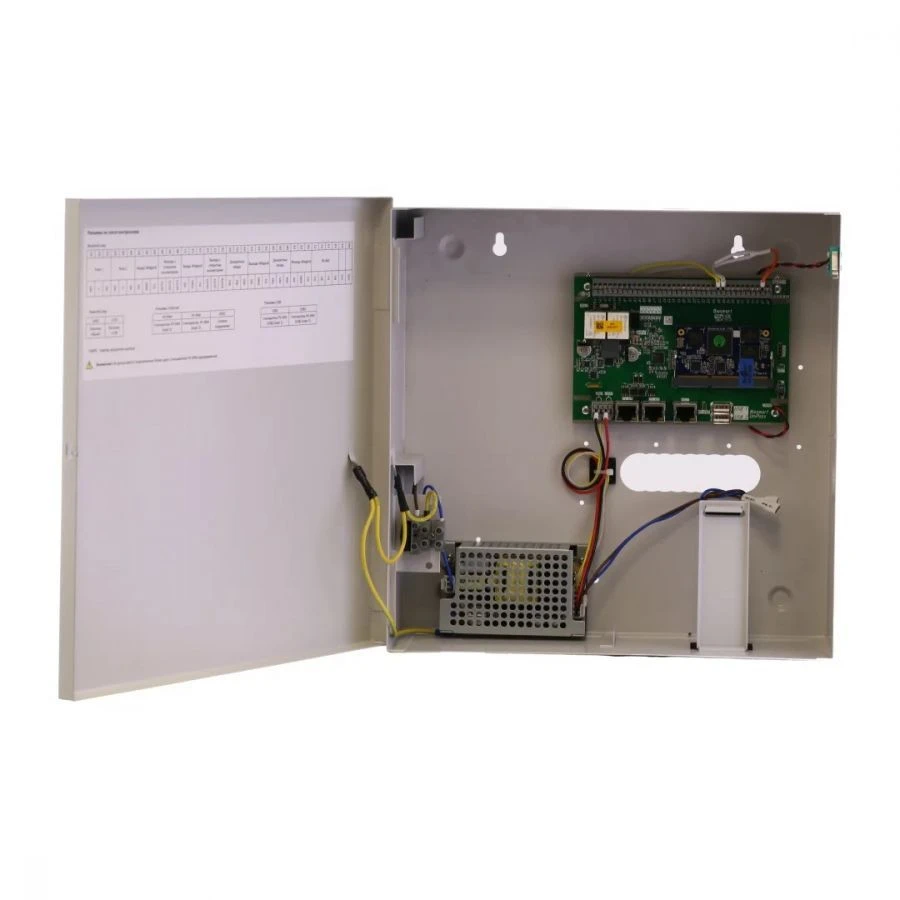

BioSmart UniPass-EX Palm Vein and RFID User Identification Controller

Available for Import

BioSmart UniPass-EX Controller for Access Control and Time Management

Nuclear Security Controls

Manufacturer:PROSOFT-BIOMETRICS LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Controller is designed to identify users by palm vein pattern and RFID-cards as part of biometric access control and management system and time attendance system. The controller works together with BioSmart PV-WM biometric readers and/or RFID readers. The controller has built-in relays, discrete inputs and outputs, RS-485, Wiegand In/Out, USB, Ethernet interfaces.

The controller is equipped with a power supply unit for connection to a 220 V, 50 Hz power supply network. The controller housing has fasteners for battery installation. Operating temperature range is from -20°C to +50°C.

Specifications

Identifier types

Palm vein pattern, RFID card

Maximum number of RFID tags stored on the controller

1000000

Maximum number of events stored on the controller

10000000

Interface for communication with the server

Ethernet (IEEE 802.3u 100BASE-TX)

Supported interfaces

Wiegand In/Out, RS-485 (OSDP), USB, Ethernet + PoE, discrete inputs and outputs

Number of outputs for connection of BioSmart PV-WM readers

Two Ethernet ports + PoE (IEEE 802.3af class 3)

Built-in relay

Two relays with normally open and normally closed contacts (DC 24 V 7 A)

Power supply parameters

DC 220V 0.5A

Overall dimensions

314 x 311 x 104 (mm)

Net weight

2600 year

Temperature range

-20...50 °C

Maximum number of palm vein biometric templates stored on the controller

300000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
