Bimetallic thermometer TBf-221 IP54 100 USH

Temperature Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

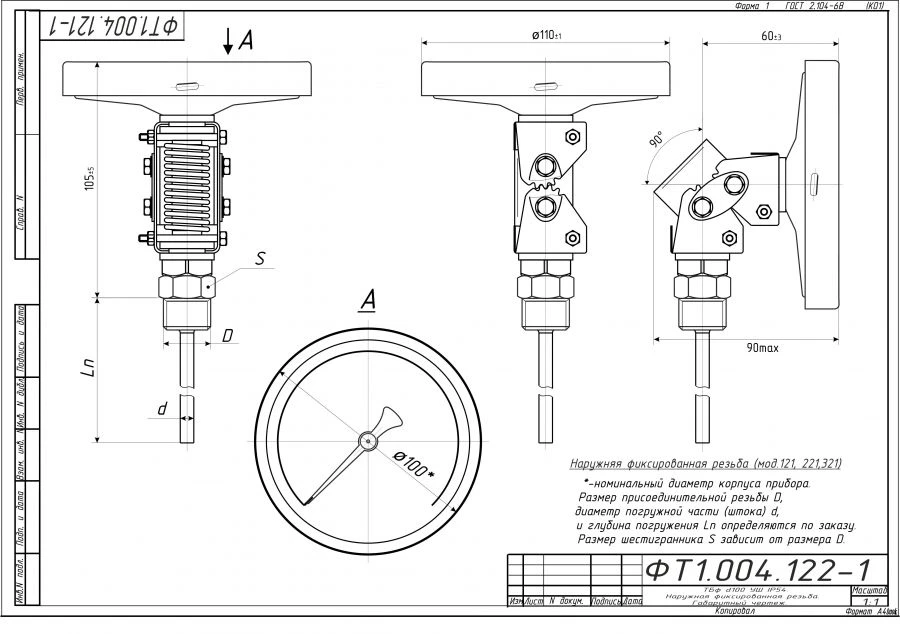

Thermometers bimetallic TBf are designed to measure the temperature of liquid and gaseous media, not aggressive to the material of protective sleeves or thermoballoon (in the absence of a protective sleeve), as well as the temperature of bulk solids and solids. Thermometers are manufactured with universal (USH) location of the thermoballoon relative to the body. The thermometers can have a zero corrector located on the end of the thermoballoon or the body. The design of the fitting is fixed male thread. Thermometers can be referred to explosion-protected equipment of group II according to GOST 31441.1-2011 (EN 13463-1:2001), GOST 30852.0-2002 (IEC 6079-0:1998) and are intended for use in places (except underground mine workings and their above-ground structures) dangerous by explosive gas media in accordance with the assigned explosion protection marking.

Specifications

Material of protective armature Stainless steel

Insulation of the working end airtight

Degree of protection IP54

Type TBf

Type of climatic version UHL1

Unit designation TBf-221 IP54 100 USH

Measuring limit, max 600 °C

Measuring limit, min -60 °C

Accuracy class 2.5

Length of immersion part 1500 mm

Body diameter 100 mm

Stem arrangement universal

Availability of protective sleeves in the set Armoured glass

Number of protective sleeves in the set 1 pc

Measuring limit, max 600 °C

Measuring limit, min -60 °C

Accuracy class 2.5

Length of immersion part 1 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
